3DGence Module M500 (For INDUSTRY F421)
Enables INDUSTRY F421 users to print high performance polymers like PEEK or PEKK on INDUSTRY F421.

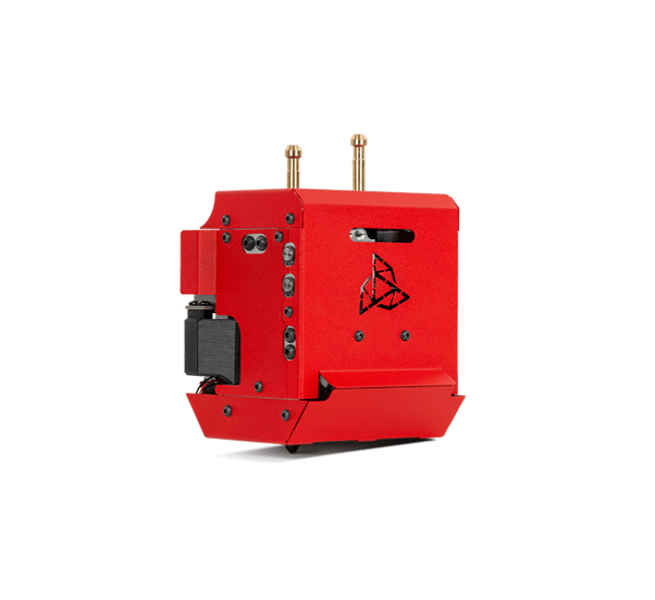

Module M500
M500 is one of the interchangable modules that can reach up to 500C of extrusion temperature. Such high temperature combined with the printer’s heated chamber allows to print high performance polymers like PEEK or PEKK on INDUSTRY F421. On M500 module can print PEEK and PEKK on the soluble ESM-10 support.
- Double printhead
- PEEK and PEKK on INDUSTRY F421
- ESM-10 - Soluble support material
Model materials

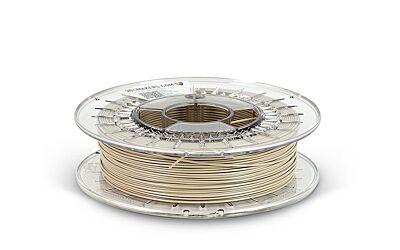

PEEK, PEKK (only for INDUSTRY F421)
Support materials
ESM-10 (soluble)
Read our blog explaining the differences between the 3DGence Modules here
Change the module and use one 3D printer for all jobs

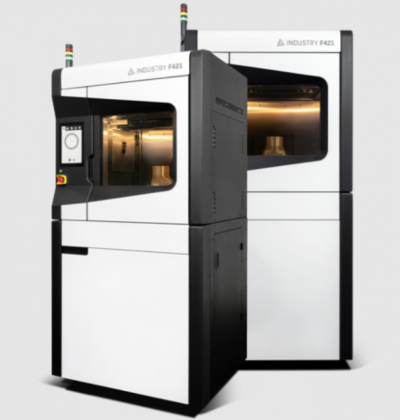

Modular system used in the 3DGence INDUSTRY F421 and INDUSTRY F350 is a practical and cost-effective solution. 3DGence modular system is unique in the industrial 3D printers segment. The possibility of using three different modules in one 3D printer allows you to produce repeatable models from the widest range of filaments. Each module is customised to a specific group of materials in order to optimize the printing process. Internal modules memory saves the time that would be used for calibration. All the modules are also equipped with dual hotends and inactive nozzle lifting system.
Compare the 3DGence Modules
|
M280 |
M360 |
M500 |
|
| Print temperature | Up to 280°C | Up to 360°C | Up to 500°C |
| Nozzle diameter | 0,5 / 0,5 mm | 0,4 / 0,4 mm | 0,4 / 0,4 mm |
| Model materials | ABS, ASA, PLA, PA6 PC | PC, ULTEM (only for INDUSTRY F421) | PEEK, PEKK (only for INDUSTRY F421) |
| Support materials | HIPS (breakaway), ESM-10 (soluble) | ESM-10 (soluble) | ESM-10 (soluble) |
| Manufacturer SKU | B0700040300007 |
|---|---|
| Technology | Fused Filament Fabrication (FFF) |
| Operating Temperature | Up to 500 ºC |
| Brand | 3DGence |
