3DGence Industry F421
Lead-time 2-3 working days
High Speed
Print speed up to 400 mm/s and 1 meter per second
Large build volume
Dimensions of 380 x 380 x 420 mm
Low maintenance solution. Always ready to print.

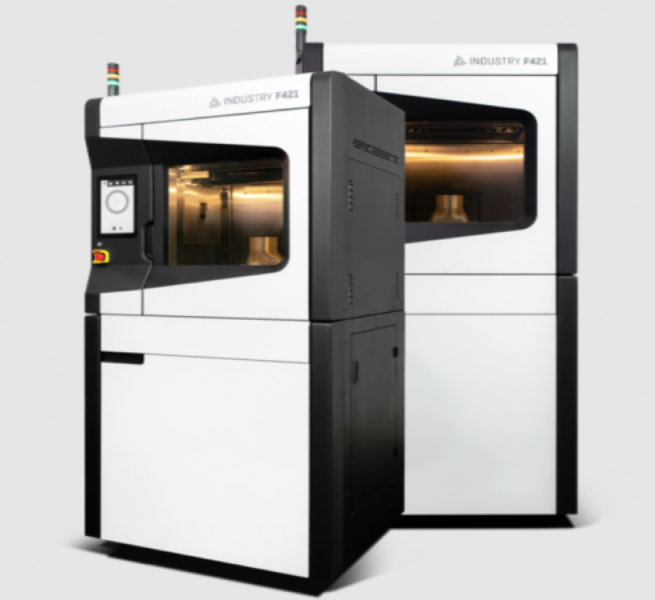

The 3DGence INDUSTRY F421 is a dual extruder FDM (fused deposition modelling) 3D printer designed for industrial applications where accuracy, speed, comfort and safety of the entire 3D printing process are crucial. This 3D printer is suitable for working with a wide range of technical materials including the high-performance thermoplastics and composites.
High speed
The 3DGence INDUSTRY F421 pushes the boundaries of the printing speed of industrial 3D printers.
The printing speed is the key aspect of the process, print speed up to 400 mm/s and 1 meter per second of travel move makes INDUSTRY F421 a great tool. It’s a great machine for rapid prototyping but also a full-fledged additive manufacturing system for your business.
Large build volume
The large chamber volume gives you the opportunity to print large or many models in one run.
With the dimensions of 380 x 380 x 420 mm, you can 3D print even larger models without splitting them or joining the parts later. 3DGence INDUSTRY F421 has the best volume to price ratio in its class.
Composite ready industrial 3D printer
Print high-performance materials that are additionally reinforced to make your end-use parts even more durable.
3DGence INDUSTRY F421 can be equipped with hardware allowing to print safely from reinforced materials. Improve the production of your most heavily loaded construction parts.
Safety
Ensured user safety and work continuity proven by TUV Safety and Regular Production Surveillance.
With a focus on high-performance materials, it’s important to provide adequate emissions control. F421 filtration system offer unprecedented filtering efficiency among FFF AM platforms, capable of filtering: macro dust, nano dust (VOC, UFP), solvent vapour, noxious gasses, foreign particles.
3DGence INDUSTRY F421 is equipped with hardware allowing to print safely from reinforced materials. Improve the production of your most heavily loaded construction parts.

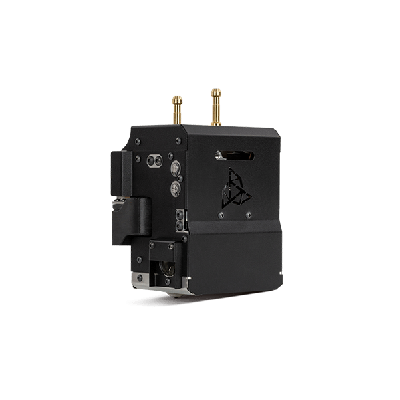

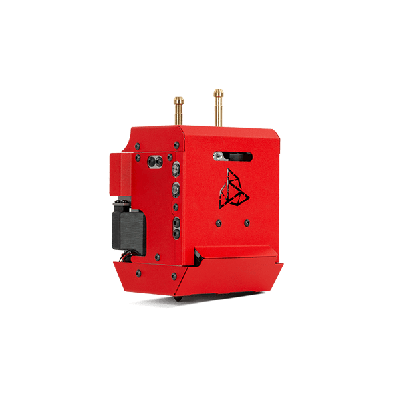

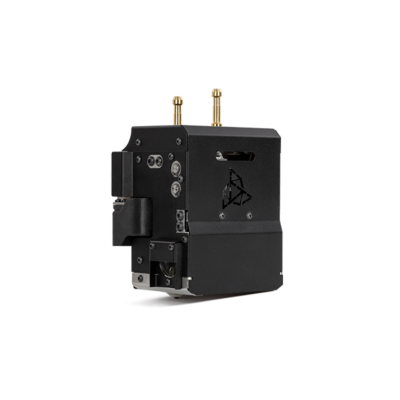

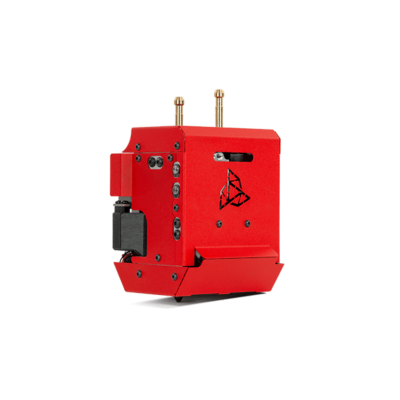

Interchangeable printing modules
Print high-performance and engineering materials that can be used by various industries.
3DGence INDUSTRY F421 features a modular approach to print capabilities, you don’t need to use multiple 3D printers anymore. Using job-specific printing modules combined with the predefined and engineered printing profiles you will always get the best quality of the prints. This unique solution makes INDUSTRY F420 and ideal PEEK, PEKK and ULTEM™ 3D printer.
Fully enclosed actively heated printing chamber
The heated chamber reaches a high temperature and maintains it on a stable level.
Print engineering and high-performance materials with the perfect print quality, exceptional mechanical strength and great dimensional accuracy. High-performance filaments require stable printing process and high extrusion and chamber temperature.
Heated material chamber with automatic spool change system
Keep your materials always dry and ready to print.
Materials are kept in a stable environment due to the heated materials chamber. There are 4 material bays in the filament chamber: two dedicated for model materials and two for the support. When the material is running out, it will be automatically replaced in the extruder with the material from the second bay.
Smart Material Manager
Guarantee of optimal working conditions.
The NFC scanner collects data of the filament used during the printing process for optimal working conditions and maximum speed. The printer checks the information like weight, type, colour and percentage quantity of remaining filament loaded to make the process user-friendly.
Autocalibration
Low maintenance solution, always ready to print.
Modules and printer are calibrated automatically, this ensures print quality and dimensional accuracy. The printer does not require manual calibration at all.
| Layer Height | Min. layer height 50 μm |
|---|---|
| Build Dimensions | 380 × 380 × 420 mm (60 648 cm3) |
| Software | 3DGence SLICER 4.0 |
| Connectivity | WiFi, USB Stick, Ethernet Cable |
| Technology | Fused Filament Fabrication (FFF) |
| Operating Temperature | Working temperature: 18-30°C Storage temperature: -20-54°C |
| Power Requirements | - 230V 1ph with 32A (3n+p+e) IEC 60309 plug (recommended) - 230V 1ph 20A direct connection |
| Dimensions | 1900 × 940 × 900 mm |
| Filament Diameter | 1.75mm |
| Weight (KG) | 365 |
| Brand | 3DGence |
