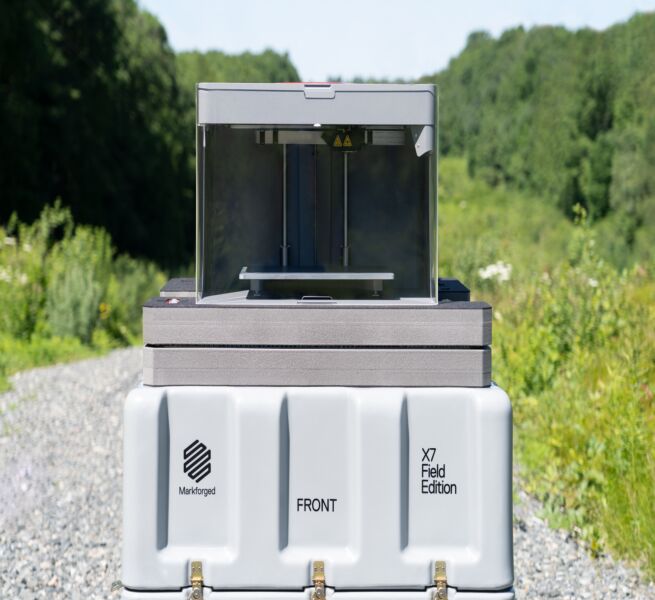

Markforged X7™ Field Edition
Lead-time 2-3 working days
Print stronger parts. Anywhere in the world. The Markforged X7 FE extends the reach of the Digital Forge, helping you produce parts with minimal effort at any point of need.
Ready to Print: Go from packaged to printing in under 3-minutes.
All-in-One System: Printer pack with all the materials, replacement parts, and tools needed for months of deployment in the harshest environments

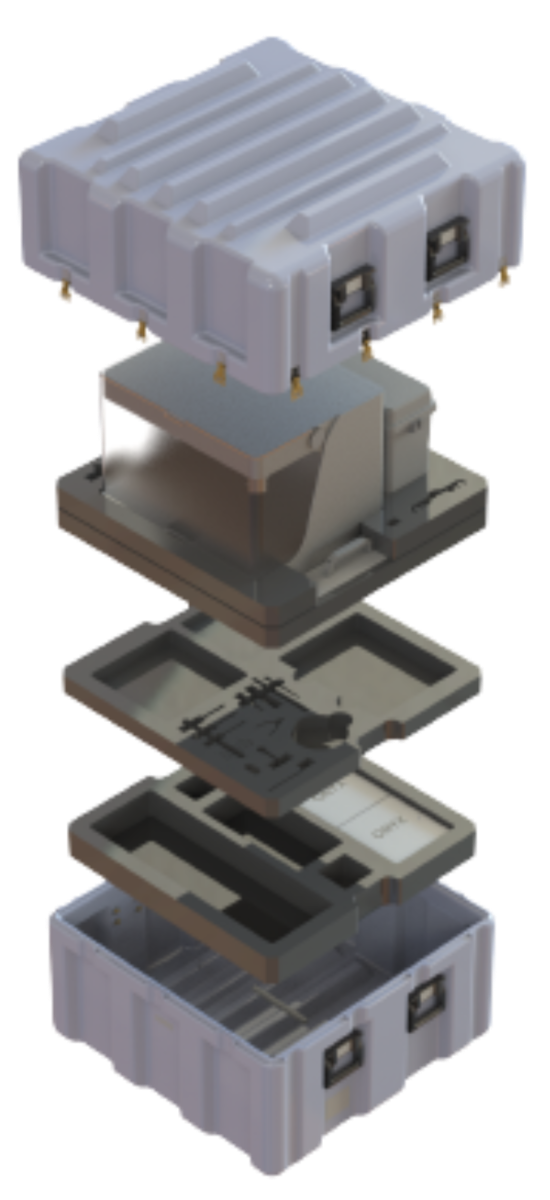

Rugged Packaging: Pelican AL3232 single lid case with custom foam modules and moving component locks to mitigate damage during transport.

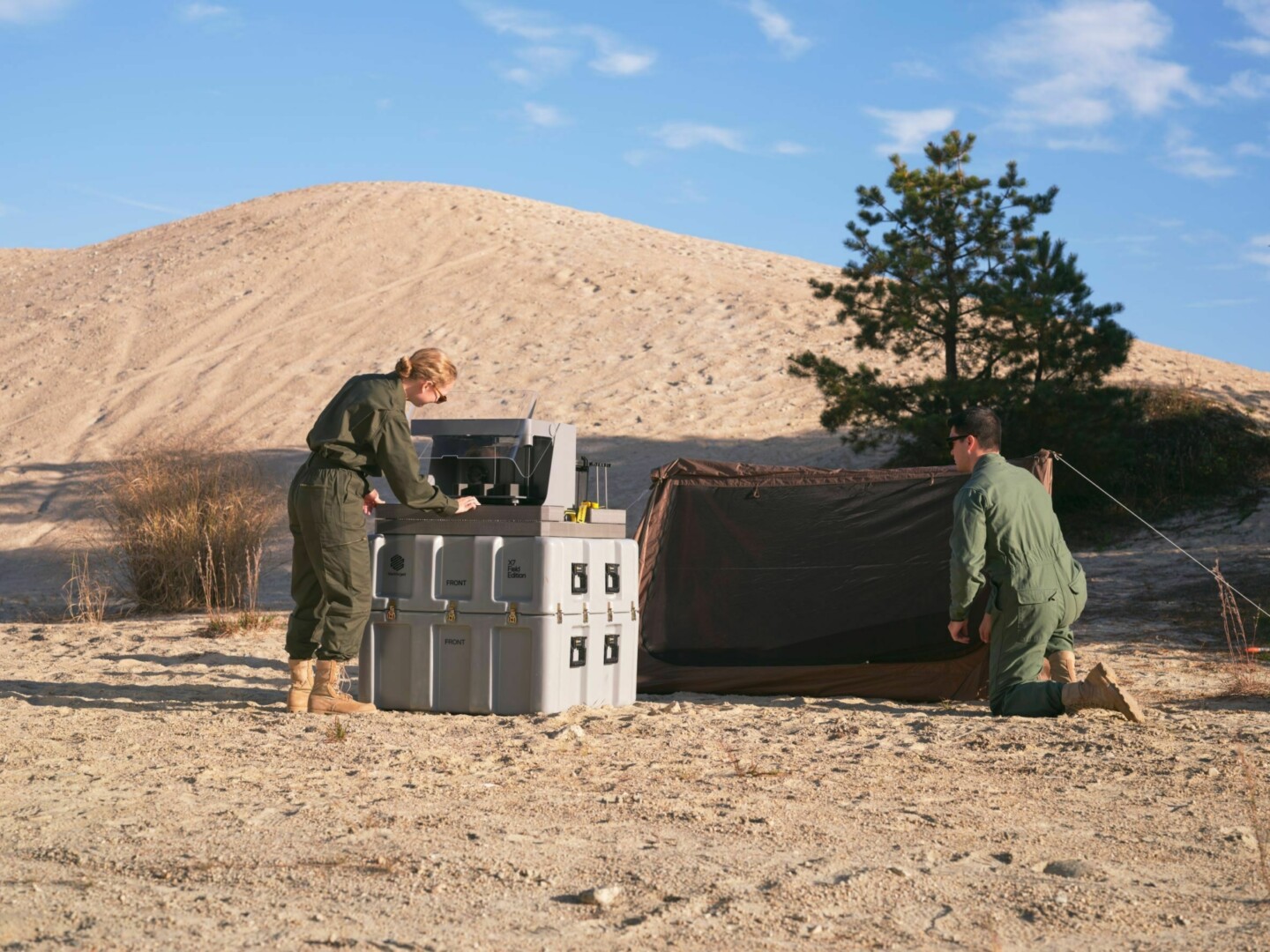

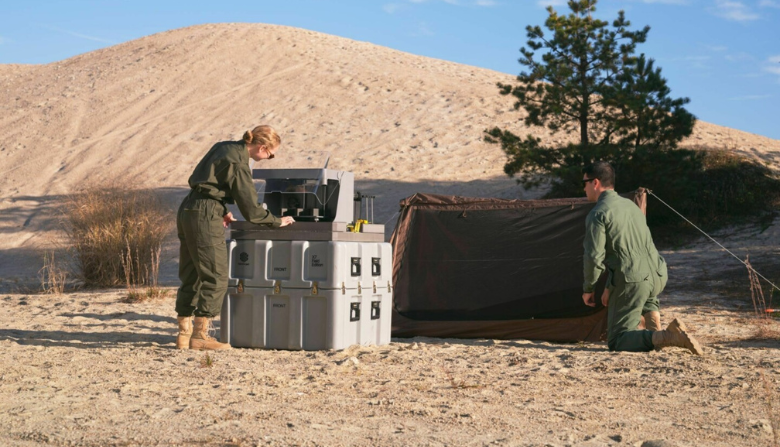

X7 Field Edition is the rugged, field-deployable industrial 3D printer for tactical response to supply challenges in remote locations.
Markforged made X7 FE for those who go beyond.
Whether you're working far from home with an unstable power or internet connection away from next day delivery locations X7 FE bridges gaps in the path from art to part, where the road is not well-traveled. Armed services, field services, or factory operations The Markforged X7 Field Edition can follow you there.
X7 FE extends the reach of the Digital Forge, helping you produce parts with minimal effort at any point of need.

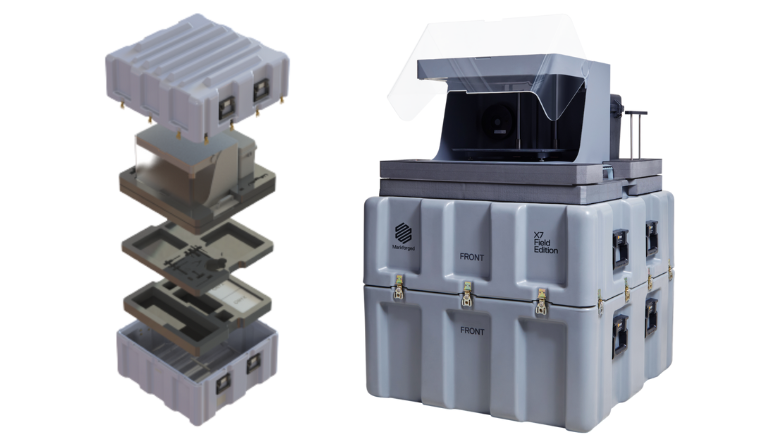

Rugged: Pelican AL3232 single lid case with custom foam modules and moving component locks to mitigate damage during transport.
Reliable: Increase supply chain resilience by printing tools, adapters, and replacement parts for equipment at the point of need. Ensure dimensional accuracy for the most critical tolerances with the integrated laser micrometer and adaptive bed leveling.
Ready: Simple user interface for effortless print configuration, with onboard utilities for guided printer calibration and maintenance. The X7 FE can be fully set up and ready to print in minutes. The unit contains the materials, spare parts, and tools needed to sustain production between resupply opportunities.
Compatible Materials: Onyx™, Onyx ESD™, Onyx FR™, Onyx FR-A™ Nylon, Carbon Fibre, Carbon Fiber FR-A, Aramid Fibre (Kevlar®), Fibreglass, HSHT Fiberglass
| Layer Height | 100 μm default, 50 μm minimum, 250 µm maximum |
|---|---|
| Build Dimensions | 330 mm x 270 mm x 200 mm |
| Materials | Nylon, Onyx, Onyx ESD, Onyx FR, Carbon Fibre, Fibreglass, Kevlar, HSHT Fibreglass |
| Manufacturer SKU | F-PR-3023 |
| System Requirements | Mac OS 10.7 Lion +, Win 7+, Linux |
| Software | Eiger (Free Trial) |
| Connectivity | WiFi, USB Stick, Ethernet Cable |
| Technology | Continuous Fibre Reinforcement (CFR) |
| Power Requirements | 100–240 VAC, 150 W (2 A peak) |
| Dimensions | Width 36 in (914 mm) Depth 36 in (914 mm) Height 48 in (1220 mm) |
| Weight (KG) | 86 |
| Brand | Markforged |
- Markforged X7 FE 3D Printer
- 3 x Onyx Filament Spool - 800cm³
- 1 x Fibreglass Filament Spool - 50cm³
- 2 x Carbon Fibre Spool - 150cm³
- 1 x Kevlar Spool - 50cm³
- 1 x High Temp Fibreglass Spool - 50cm³
- All tools required for X7 maintenance
- Moisture-sealed material storage dry box
- Integrated ventilation and mating geometry for secure placement on top of case
- AL3232 Pelican Case
