Formlabs Fuse 1+ 30W 3D Printer
- Superior Print Speeds
- Industrial Grade Materials
- Zero Waste, High ROI

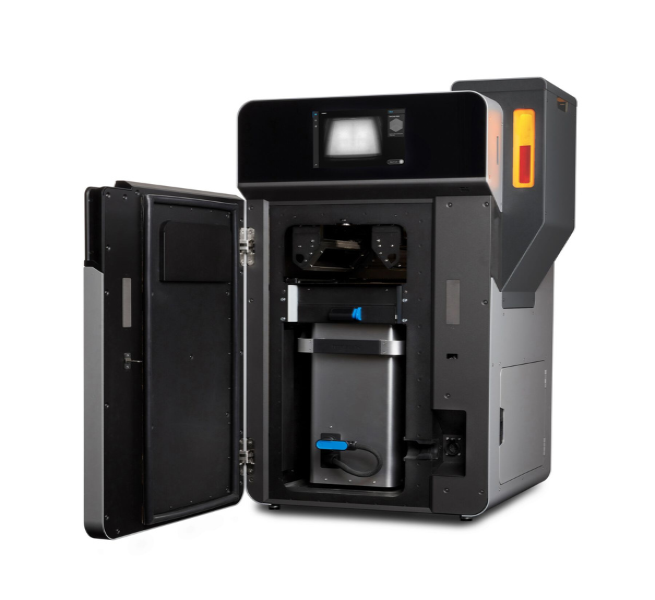

Introducing the New Fuse 1+ 30W SLS Printer: Fast Print Speed, High-Performance Materials
Designed for maximum output and minimum waste, Fuse 1+ 30W is our compact SLS 3D printer that packs an industrial punch. Unlock unprecedented print speeds and a full range of materials to deliver truly rapid prototyping and production in-house.

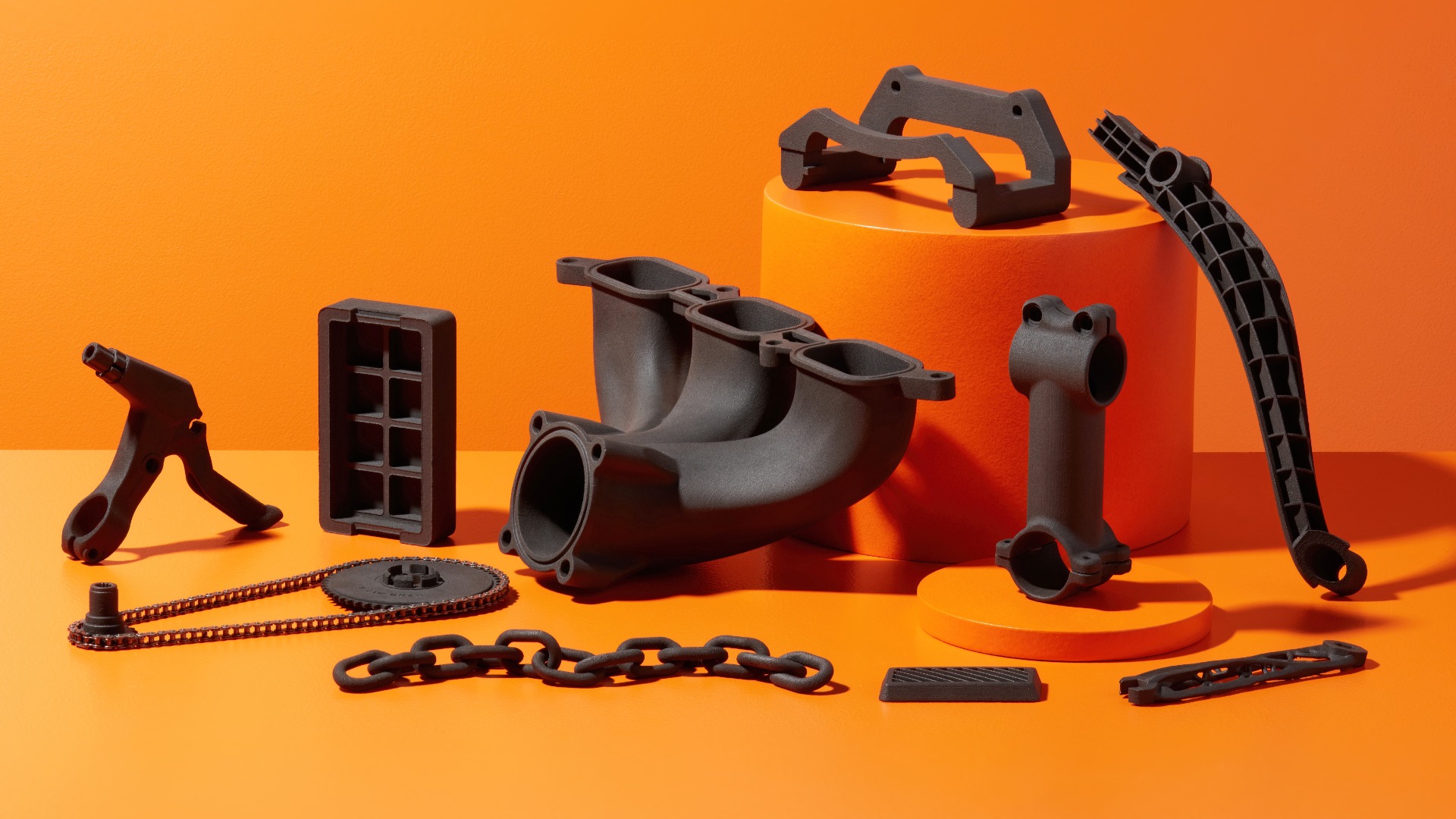

Building on effective powder containment and an easy setup, Fuse 1+ 30W is equipped with a powerful, 30W laser enabling same-day delivery of prototypes and end-use parts. Active powder handling unlocks the use of exclusive, new materials such as carbon fiber-reinforced nylon, and a nitrogen purge print option allows for unprecedented performance and consistency across all SLS parts.
Whether you need a functional prototype today or produce hundreds of end-use parts each week, the Fuse 1+ 30W levels up your workflow for better consistency, shorter turnaround time, and higher efficiency.
What's Included
- Fuse 1+ 30W Printer 230V
- Build Chamber 230V
Compatibility
- Fuse Sift
- Powder Cartridge
| Layer Height | 110 microns |
|---|---|
| Build Dimensions | 165 × 165 × 300 mm |

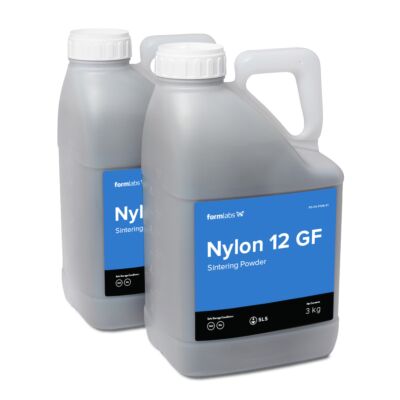

| Materials | Compatible: Nylon 12 Powder, Nylon 12 GF Powder, Nylon 11 Powder, Nylon 11 CF Powder, TPU 90A, Polypropylene Powder |
| Manufacturer SKU | FS1-P30-230V |
| System Requirements | Windows 7 (64-bit) and up Mac OS X 10.12 and up OpenGL 2.1 4 GB RAM (8 GB recommended) |
| Software | PreForm Desktop Software |
| Connectivity | WiFi, USB Stick, USB Cable, Ethernet Cable |
| Technology | Selective Laser Sintering (SLS) |
| Operating Temperature | Operating Environment 18 – 28 ºC Internal Temperature Up to 200 ºC |
| Power Requirements | EU: 230 VAC, 7.5 A (dedicated circuit) |
| Dimensions | Printer 64.5 × 68.5 × 107 cm (165.5 cm with stand) |
| Laser Specifications | 247 microns Ytterbium Fiber IEC 60825-1: 2014 certified 1070 nm wavelength Maximum 30 Watts 3.24 mrad beam divergence (nominal, full angle) |
| Supports | No supports |
| Weight (KG) | 120 kg (without build chamber or powder) |
| Brand | Formlabs |
What are the differences between the Fuse 1 and Fuse 1+ 30W?
The Fuse 1+ 30W offers even greater capability than the Formlabs Fuse 1 The Fuse 1+ 30W has an upgraded laser meaning faster print speeds, it is compatible with all of the Formlabs core Nylon materials as well as Nylon 11 CF. With the ability for nitrogen purging for enhanced material performance it is also more efficient and can print with zero waste.
Are spare parts for the Fuse 1 and Fuse 1+ 30W the same?
Spare parts are the same, with notable exceptions including:
