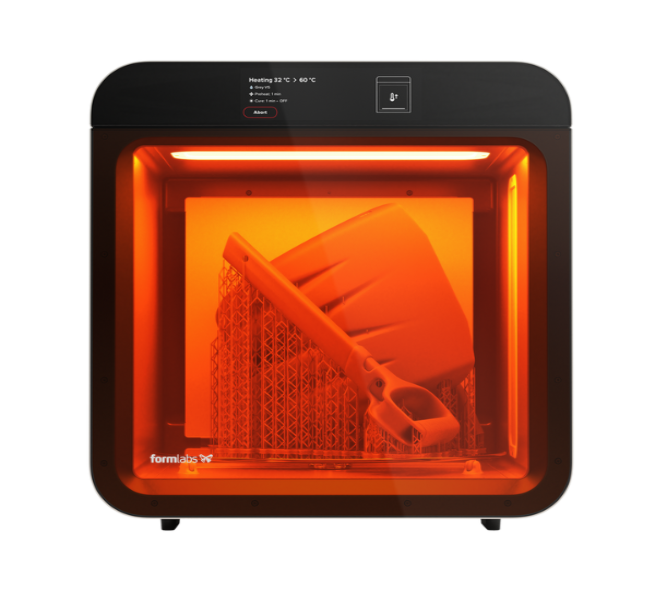

Formlabs Form Cure L V2

3 In Stock Next Working Day*
SKU
FORFHL-CU-230V-02-U1
£3,600.00 £4,320.00
V2 Form Cure L for faster heat up and curing
Features


Post-Cure Most Large Resin Parts in 60 Seconds



Formlabs Form Cure L V2 uses a combination of heat and 405 nm light with precision to post-cure your large 3D prints. The Cure L V2 delivers tough, strong prints consistently and at faster speed than its predecessor the V1 Post-cure your large Form 4L and 4BL prints in as little as 60 seconds



Blazing Fast Curing,Nearly Instant Heat Up Time
Post-cure general-purpose resins in just 60 seconds, or cure engineering & biocompatible resins in 3–15 minutes. The 230 V version heats to 60 °C in around 150 seconds — that’s blazing fast.



Consistent, Validated Results
A convection heating system reaches up to 100 °C, while 96 multi-directional LEDs deliver a uniform UV irradiance of 14.5 mW/cm² for repeatable, reliable curing.





Compared to the Form Cure L V1, the Form Cure L V2...

• 5 x more UV power

• faster heat up time

• curing up to 19% larger parts

• 26% reduction in unit footprint

• 26% reduction in unit footprint

• 45+ settings for Formlabs materials

• able to customise time and temperature





Post-Cure Large Form 4 Prints

Designed for big-format prints: supports parts up to 353 × 196 × 365 mm on a 404 mm rotating glass turntable accessed via a side-hinged door.



“We were shocked by how fast the cure times were across all materials, even the engineering resins, which allowed us to work faster and get finished parts to our engineers in less time.”

Agostino Lobello, Product Development Engineer at Radio Flyer.





Specifications
More Information
Technology UV Curing
Brand Formlabs
