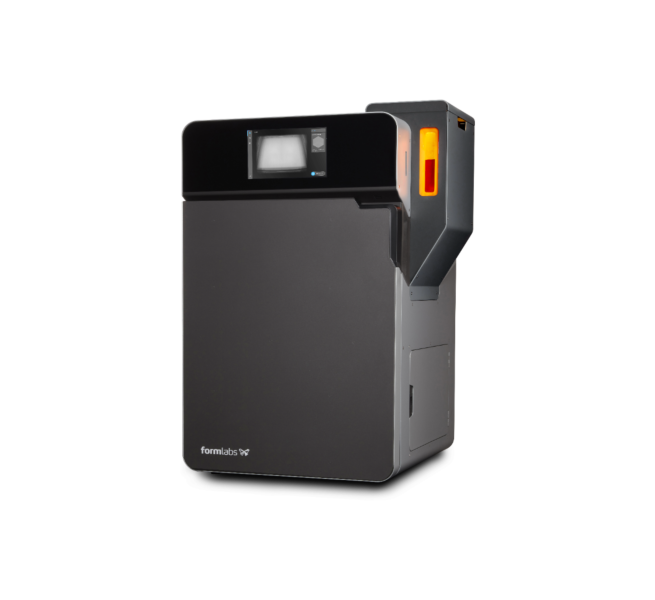

Formlabs Fuse 1+ 30W 3D Printer Workflow Essentials Package
Formlabs highly recommends the workflow essentials package for achieving an efficient and optimized workflow when using the Fuse 1+ 30W printer with the Fuse Sift powder recovery station. The Fuse 1+30W is Formlabs SLS flagship 3D Printer.
Designed for maximum output and minimum waste, Fuse 1+ 30W is a compact SLS 3D printer that packs an industrial punch. Unlock unprecedented print speeds and a full range of materials to deliver rapid prototyping and in-house production.
Building on effective powder containment and an easy setup, Fuse 1+ 30W is equipped with a powerful, 30W laser enabling same-day delivery of prototypes and end-use parts. Active powder handling unlocks the use of exclusive, new materials such as carbon fibre-reinforced nylon, and a nitrogen purge print option allows for unprecedented performance and consistency across all SLS parts.
Whether you need a functional prototype today or produce hundreds of end-use parts each week, the Fuse 1+ 30W levels up your workflow for better consistency, shorter turnaround time, and higher efficiency.
What’s Included in the Package:
| Layer Height | 110 microns |
|---|---|
| Build Dimensions | 16.5 x 16.5 x 30 cm |

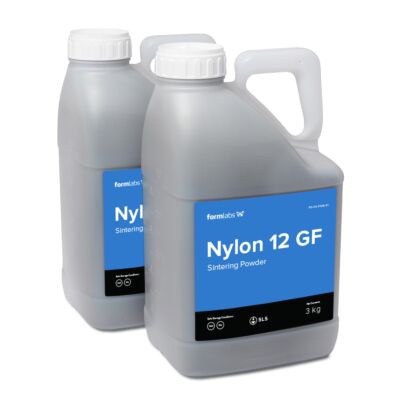

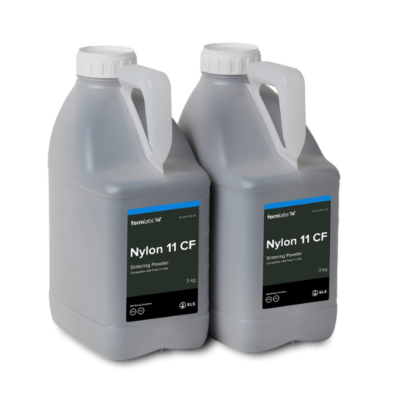

| Materials | Nylon 11, Nylon 11 CF (carbon fibre), Nylon 12, Nylon 12 GF (glass-filled), TPU 90A (flexible) |
| System Requirements | Windows 7 (64-bit) onwards, Mac OS X 10.12 onwards, OpenGL 2.1, GB RAM (8GB recommended) |
| Software | PreForm |
| Connectivity | WiFi, USB Stick, Ethernet Cable |
| Technology | Selective Laser Sintering (SLS) |
| Operating Temperature | 18 - 28ºC |
| Power Requirements | 230 VAC, 7.5 A (dedicated circuit) |
| Dimensions | Fuse 1+30W - 64.5 (w) x 68.5 (d) x 107 cm (h) (165.5 cm with stand) Minimum Access Dimensions - 125.5 (w) x 149.5 (d) x 187 cm (h) Recommended Operating Footprint - 145.5 (w) x 149.5 (d) x 167.5 cm (h) to allow access to the front and sides Stand Dimensions - 59.6 (w) x 60 (d) x 58.4 cm (h) |
| Laser Specifications | Ytterbium Fiber IEC 60825-1: 2014 certified 1070 nm wavelength Maximum 30 Watts 3.24 mrad beam divergence (nominal, full angle) |
| Supports | No Supports Needed |
| Weight (KG) | 120kg (without build chamber or powder) |
| Brand | Formlabs |
