Lead-time 2-3 working days
For large end-use parts based in onyx complete with continuous strands of fibreglass, carbon fibre, Kevlar or HSHT fibreglass, the Markforged X7 is the printer for when precision and strength is needed. Offering superb strength-to-cost and strength-to-weight ratios as well as high impact resistance, this printer can create parts at a fraction of the cost of machining processes.
- Build size: Max build size of 330mm x 270mm x 200mm
- In-process inspection: Lasers scan for dimensional accuracy
- Detail: Print down to a layer height of 50-microns
- Industry: Has the potential to replace metal machining processes.
The only way to get industrial-grade parts in hand in hours, not weeks — the X7 enables engineers and designers to fundamentally improve their manufacturing operation at light speed.

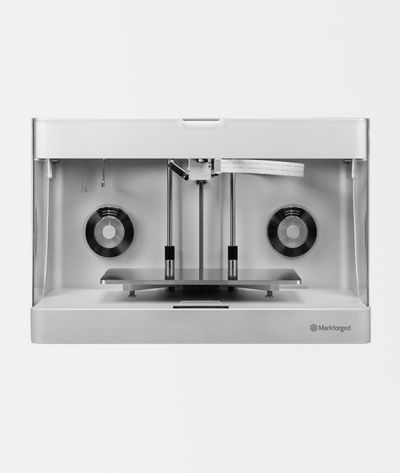

Introducing the Markforged X7 - the most powerful composite 3D printer on the market. This 3D printer offers uncompromised strength and precision, with industrial-grade mechatronics and breakthrough technologies which transcend those on the market today.
Print with Markforged's full range of Composite Base materials and Continuous Fibers.
The X7 can print with Nylon or Onyx (ESD/FR) as the core build material, and can reinforce parts with Carbon Fiber, Fiberglass, Kevlar, High Strength and High Temperature Fiberglass and Precise PLA. Parts that are reinforced with a composite can be as strong as 6061 aluminium.

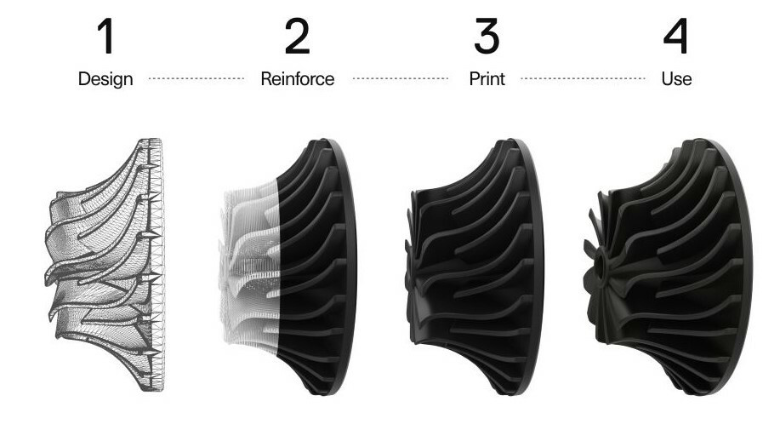

The power of Continuous Carbon Fiber at your fingertips.

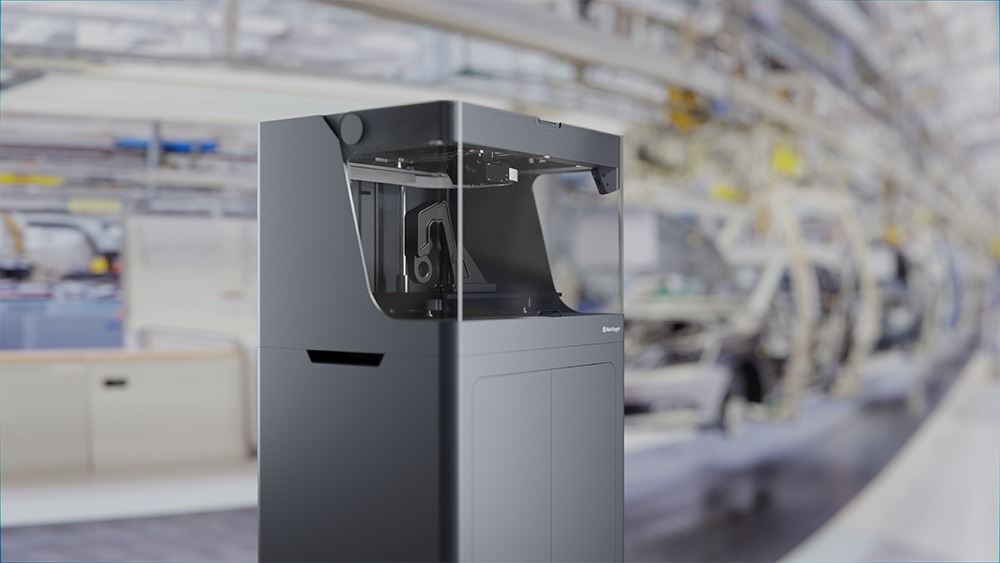

Print Enormous and Hugely Detailed Parts
The large build volume of the X7 makes it ideal for creating large-scale parts that currently only metal machining processes can handle. With the ability to print parts up to 330mm in width, 250mm in depth and 200mm in height, the X7 offers designers and engineers are real-world alternative to traditional manufacturing techniques. And with a 50-micron print resolution, your parts will come out with a beautiful finish, perfectly capturing the contours, details and textures you design or scan for print.

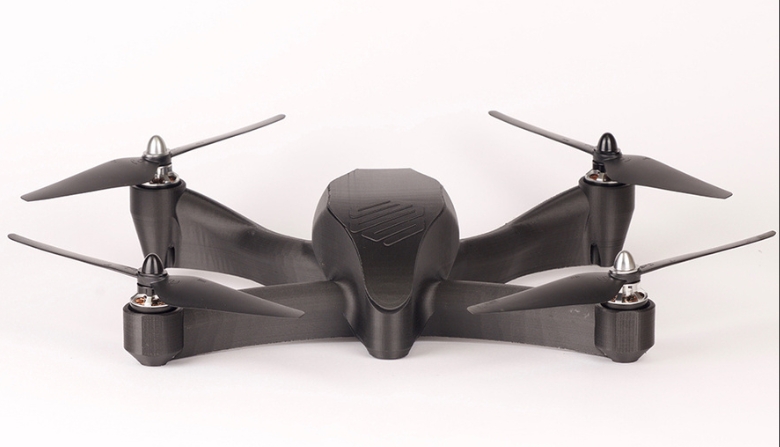

Stunning Accuracy, Detail and Print Results
The X7 is the first desktop 3D printer of its kind to have in-process laser inspection, a feature which comprises a laser on the print head which scans your parts for dimensional accuracy mid-print, with a 1-micron accuracy. This feature ensures that your parts meet exact tolerances, something which is critical for end-use applications. In addition to this, the Markforged X7 has encoders on the print head for accuracy, silent stepper motors, and an enclosed chamber with a high-precision build plate to guarantee a high degree of part quality.

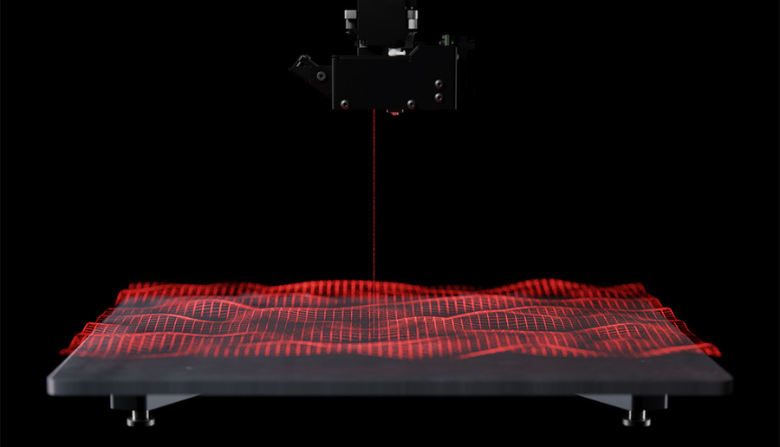

Blacksmith for X7
Blacksmith is a subscription feature available through Eiger, the additive manufacturing software for Markforged. It scans, measures, and compares dimensional accuracy data of printed parts to their design files — giving manufactures reliable parts right off the print bed.
What People Say
“Our first Markforged printer paid itself off in less than 1.5 months and saved us over 81% versus machining.”
– Bill Hollingsworth, Dixon Valve
“The Markforged [X7] is a unique 3D printer that uses laser scanning to ensure pieces that come off the machine are precisely as ordered.”
– John Biggs, TechCrunch
|Materials||Nylon, Onyx, Onyx ESD, Onyx FR, Carbon Fibre, Fibreglass, Kevlar, HSHT Fibreglass, Precise PLA|
|Layer Height||100 μm default, 50 μm minimum, 250 µm maximum|
|Build Dimensions||330 mm x 270 mm x 200 mm|
|Connectivity||WiFi, USB Stick, Ethernet Cable|
|Technology||Continuous Fibre Reinforcement (CFR)|
|System Requirements||Mac OS 10.7 Lion +, Win 7+, Linux|
|Software||Eiger (Free Trial)|
|Dimensions||584 mm x 483 mm x 914 mm|
|Power Requirements||100–240 VAC, 150 W (2 A peak)|
- Markforged X7 3D Printer
- 1 x True Bed Build Plate
- 3 x CFF Quick-Change Nozzles
- 3 x FFF Quick-Change Nozzles
- Markforged Cloud & Local Storage Options
- Markforged Exclusive Eiger Features
- Additive-X X7 Installation & Training Course
