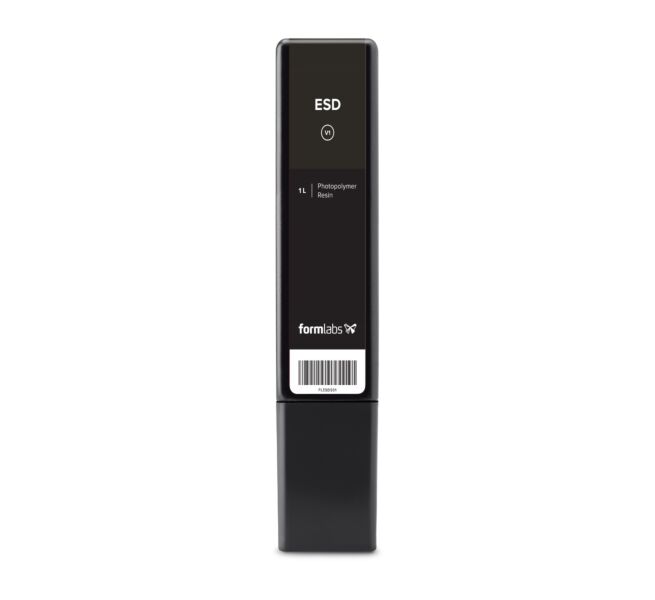

Formlabs ESD Resin 1L
Perfect for applications such as:
- Tooling & fixturing for electronics manufacturing
- Custom trays for component handling and storage
- Anti-static prototype and end-use components
Increase the operational efficiency and improve the yield of your electronics manufacturing lines with ESD Resin, a cost-effective solution to create custom ESD-safe production tooling.
Use ESD Resin to prototype and validate electronics production workflows, print static-dissipative parts that repel dust and powder, and create enclosures to protect sensitive electronics from static discharge.
Support print resolutions: 100 µm and 50µm
Post-curing required
Compatibility
Printer compatibility: Form 3(+), Form 3L, Form 3B(+), Form 3BL, Form 3, Form 3B
Compatible with these resin tanks: Form 3 v2.1, Form 3L

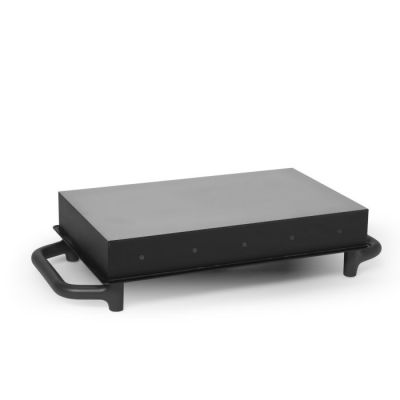

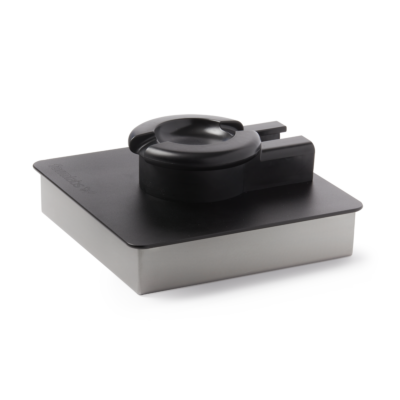

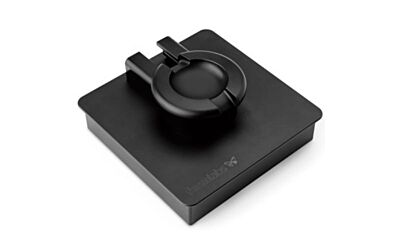

Compatible with these build platforms: Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform
Note: Print settings for this material may not be available yet on Form 3L and Form 3BL printers. Please visit the Formlabs support page for more information.
Additional resin compatibility information is available on the Formlabs Support site
Why Choose ESD Resin?
Use ESD Resin to reduce risk and increase the yield on your manufacturing line by 3D printing custom tools, jigs, and fixtures for automotive, aerospace, electronics manufacturing.
|
Static-Dissipative Protect your critical electronics from unregulated static discharge to prevent component failures. |
High Toughness With its high modulus and impact strength, ESD Resin is made to withstand operation on the production line. |
Applications
ESD Resin is a cost-effective solution for producing static-dissipative parts designed to endure use on the factory floor.
-
-
- Tooling & fixturing for electronics manufacturing
- Custom trays for component handling and storage
- Anti-static prototype and end-use components
-
Materials Properties
|
Property |
Post-cured at 70ºC |
|
Surface Resistivity |
105 - 108 |
|
Ultimate Tensile Strength |
44.2 MPa |
|
Tensile Modulus |
1.937 GPa |
|
Strain @ break |
12% |
|
Notched Izod |
26 J/m |
|
Heat Deflection Temperature 0.45 MPA |
54.2ºC |
|
Heat Deflection Temperature 1.8 MPA |
62.2ºC |
Post-Processing
Form Wash SettingsDuration 20 Minutes in IPA / TPM Notes Do not leave ESD Resin in solvent for longer than 20 minutes, as excessive solvent exposure affects the quality of the final part. We recommend washing ESD Resin separately from other resins to avoid staining. |
Form Cure Settings Duration Temperature 70° C 60 minutes Notes Follow the post-curing indications to achieve maximum material properties. |
| Manufacturer SKU | RS-F2-ESDS-01 |
|---|---|
| Technology | Stereolithography (SLA), Low Force Stereolithography (LFS) ™ |
| Weight (KG) | 1.6kg |
| Brand | Formlabs |
| Colour | Black |
