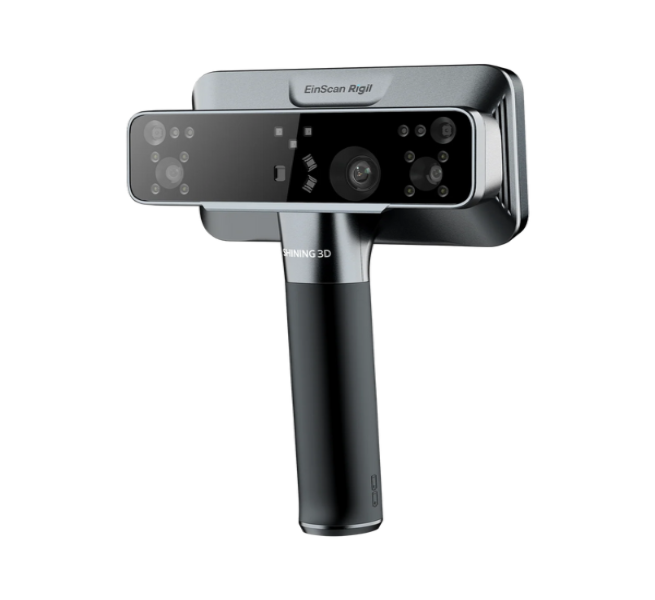

Shining 3D EinScan Rigil 3D Scanner
Unlock new levels of performance and flexibility with the EinScan Rigil’s innovative triple work modes, hybrid light source, and marker-free laser scanning technology. Designed for professionals needing precision, speed, and versatility in one powerful device.
The EinScan Rigil is a next-generation handheld 3D scanner from Shining 3D, designed to deliver professional-grade results with exceptional flexibility. It’s the first scanner to feature tri-mode hybrid laser technology, offering crossed blue laser, parallel blue laser, and infrared VCSEL scanning—all in one compact system.
Built for precision and portability, the Rigil combines high-speed data capture with onboard computing and wireless functionality, making it ideal for scanning in the studio or on-site.
Key Features
-
Tri-Mode Scanning
Switch between crossed and parallel blue laser modes for fine detail and fast coverage, or use the infrared mode for safe, marker-free scanning—ideal for larger objects or faces. -
High Accuracy and Resolution
Achieve scan accuracy up to 0.04 mm with geometric resolution down to 0.05 mm, delivering reliable results for reverse engineering, inspection, and design. -
Standalone, Wireless, or Wired
Scan anywhere with full onboard processing and touchscreen control, stream wirelessly to a PC via Wi‑Fi 6, or connect via USB‑C for maximum speed. -
Onboard Hardware
Equipped with an 8-core CPU, 32 GB RAM, 1 TB SSD, and dual batteries, the Rigil handles demanding scans without needing a PC. -
Rich Colour Capture
A built-in 5 MP full-colour camera ensures detailed texture data alongside accurate geometry. -
Portable and Versatile
Lightweight at just 870 g and capable of scanning in bright light or on reflective surfaces—no sprays or prep required.
Technical Specifications
| Specification | Details |
|---|---|
| Scan Modes | Crossed blue laser, parallel blue laser, IR VCSEL |
| Accuracy (laser) | Up to 0.04 mm + 0.06 mm/m |
| Accuracy (IR) | Up to 0.1 mm + 0.3 mm/m |
| Resolution | 0.05 mm |
| Scan Speed | Up to 4.4M points/s (laser) |
| Hardware | 8‑core CPU, 32 GB RAM, 1 TB SSD |
| Display | 6.4" 2K AMOLED touchscreen |
| Connectivity | Wi‑Fi 6, USB‑C |
| Texture Camera | 5 MP colour |
| Weight | ~870 g (with batteries) |
Whats Included:
- Calibration board
- Power adapter and cables
- Carry case
- EXScan Rigil software
| Manufacturer SKU | C010694 |
|---|---|
| Weight (KG) | 0.870 |
| Brand | EinScan |
