Shining 3D Einscan H2 Scanner - NO LONGER AVAILABLE

Out of stock
SKU
SHGEINSCANH2-U1
Features

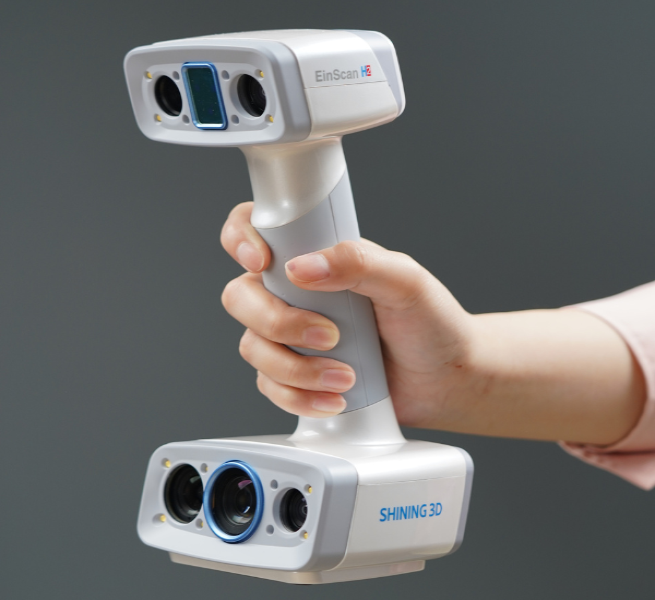

The EinScan H2 Handheld 3D Scanner: Redefining 3D Scanning with Enhanced Capabilities



Building upon the solid foundation of its predecessor, the H2 represents a significant leap forward in 3D scanning technology. Boasting a 5-megapixel resolution texture camera, this scanner captures incredibly detailed surface information, bringing your 3D models to life with stunning realism.



Accuracy has been noticeably improved, ensuring you obtain precise and reliable scan data every time. Furthermore, the inclusion of three infrared VCSEL projectors enhances its versatility, allowing it to handle a wider range of scanning scenarios. These upgrades combine to deliver not only more photorealistic textures but also superior overall data quality.



The EinScan H2's design prioritizes flexibility. With its expansive scanning area and adaptable working distance, it's exceptionally well-suited to digitizing objects of varying dimensions. Whether you're working in the tight confines of a workshop or the open expanse of a studio, the H2 adapts seamlessly to your environment, making it a truly versatile tool for any professional.



This handheld 3D scanner is designed to be highly efficient while delivering truly impressive results across a diverse range of applications, establishing itself as a robust and dependable solution for your 3D scanning needs.




Key Features in Detail:



Photorealistic Textures
Experience the difference of true-to-life 3D models. The EinScan H2 captures vibrant colours and intricate, fine textures with remarkable clarity. This capability allows you to create lifelike digital replicas that retain the unique nuances of your scanned objects.



Exceptional Environmental Adaptability

No matter the surface or the lighting conditions, the H2 provides unwavering reliability. It has been engineered to adapt effortlessly to different materials, including those with complex reflective properties, and is resilient to varying light levels. This adaptability ensures consistently high-quality scans across a variety of environments and surfaces.




Hybrid Light Source Technology

The incorporation of a dual light source significantly enhances scanning efficiency and ensures maximum performance across different applications and surfaces:



  • LED Light: Enables rapid, high-precision 3D scanning, allowing you to quickly capture accurate and detailed data. Perfect for applications where efficiency is paramount.

  • Infrared VCSEL: This powerful light source makes capturing challenging subjects such as dark surfaces, human body scans, and objects in strong ambient light a breeze, ensuring reliable results in even the most demanding environments.



Adjustable Working Distance

The EinScan H2 offers unmatched flexibility with an adjustable working distance that ranges from 200mm to 1500mm. Whether you are working with intricate small items or expansive larger objects, this flexibility allows you to fine-tune your scanning parameters, adapting to both confined spaces and wide-open scenes.




Wide Field of View (FOV)

Capture large objects quickly and effectively with the H2’s generous field of view, extending up to 780mm x 900mm. This expansive FOV drastically reduces the number of scans needed, offering increased efficiency and flexibility when working with larger volumes.



Marker-Free Scanning
Streamline your workflow and eliminate tedious preparation. The EinScan H2 handheld 3D scanner allows you to effortlessly scan objects with complex geometric features without the need for time-consuming marker placement. This speeds up your work process while simplifying the whole operation.


Model Operating System Processor Memory Graphics Card Video Memory USB Port
EInScan H2 Windows 10 (64-bit) Intel i7-8700 16 GB GTX 1060 4 GB 3.0
Specifications
More Information
Manufacturer SKU C7449
System Requirements Windows 10 (64-bit)
Operating Temperature 0 - 40°C
Dimensions 108 x 110 x 237 mm
Weight (KG) 0.7311
Brand Shining 3D
Scan Accuracy Up to 0.1mm
Light Source White Light (Visible) or Infrared Light (Invisible)
Scanning Working Distance Best - 470mm
