The biggest, fastest, and most sophisticated 3D printer Markforged have ever built.
Introducing The Beast of Additive Manufacturing...

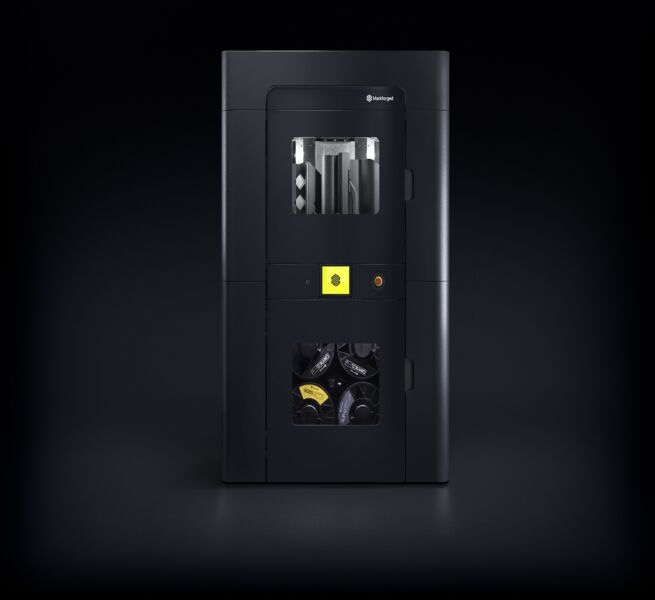

The Markforged FX20 is the biggest, fastest, and most sophisticated 3D printer Markforged have ever built. It brings the Digital Forge and Continuous Fibre Reinforcement to a new realm of parts, problems, and industries.
Massive Builds, Faster
The FX20 pairs size and throughput to make larger builds at incredible speeds, delivering the transformational benefits of The Digital Forge at a new scale. At 4.7 times larger than the Markforged Industrial Series and three nozzles (two plastic, one fibre) you can see why it's been nicknamed 'The Beast'!

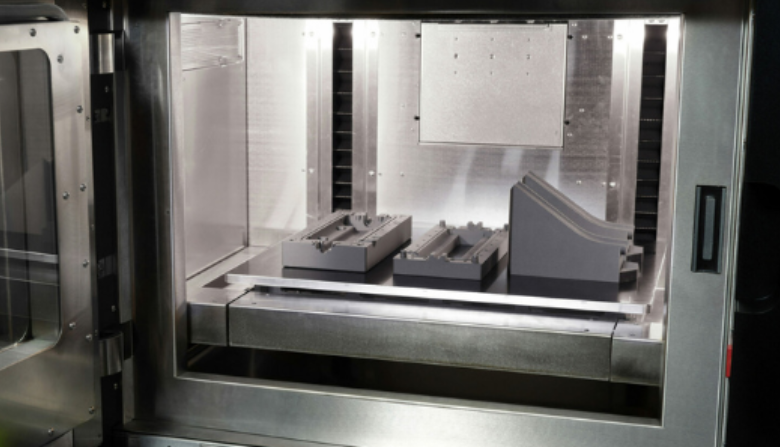

It features an 84L heated build chamber and massive, verified-flat vacuum bed with print sheets.
The motion control system offers closed loop control through precision linear encoders, and is tuned to move the 3kg print head rapidly and accurately.
FX20’s turbo mode builds parts faster than any Markforged machine, while new XL spools offer four times the material without spool changeover.
Functional Parts from Factory to Flight
Built for everything from performance tooling and fixtures to flight-ready production parts — the FX20 can reinforce ULTEM™ 9085 Filament with continuous carbon fibre. Which makes the FX20 ideal for industries such as aerospace, defence, automotive, and oil and gas.
A precision-designed, sensor-driven machine delivers breakthrough reliability and performance with a simple user experience.
Continuous Fiber Reinforcement, now with ULTEM™ 9085 filament.
Easy to use

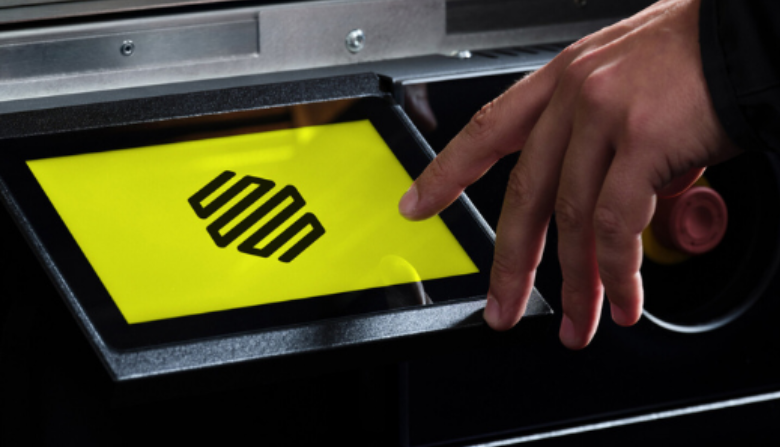

The FX20 is remarkably easy to use. It features a 7 inch touchscreen from which users can control every aspect of the printer. Automated calibration and leveling reduces operator input, while a wide variety of sensors give live feedback on machine performance. A material bay contains two active XL spools and can store two more with precise moisture control.
Quite simply put - The FX20 is the largest and most precise machine Markforged has ever produced.
- An ULTEM™ Filament capable production platform for big, strong, high temp parts — usable from factory floor to flight.
- 4.7 times bigger than the Markforged Industrial Series printers
- Turbo mode
- XL spools offer four times the material without spool changeover.
- 7 inch touchscreen from which users can control every aspect of the printer.
- Automated calibration and leveling
- Live feedback on machine performance.

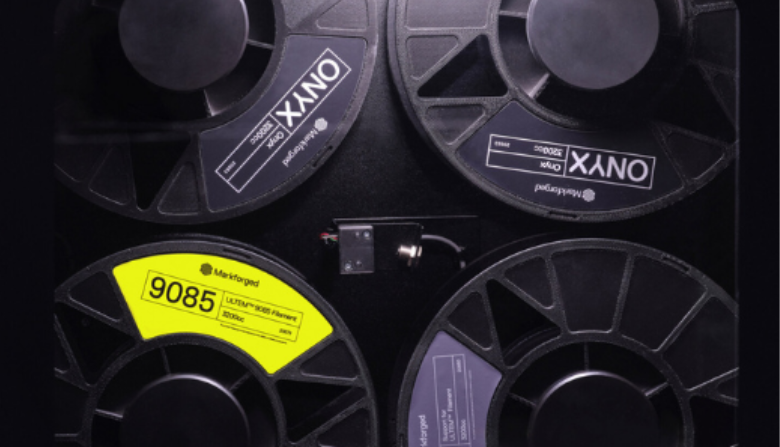

- Material bay contains two active XL spools + storage for two more with precise moisture control.
The “ULTEM™ and 9085 trademarks are used under license from SABIC, its affiliates or subsidiaries.
|Layer Height||50 μm - 250 μm|
|Build Dimensions||Single-nozzle builds: 525 x 400 x 400 mm (20.6 x 15.7 x 15.7 in) Multi-nozzle builds: 500 x 400 x 400 mm (19.7 x 15.7 x 15.7 in)|
|Materials||Compatible Materials: Onyx, Onyx FR, Onyx ESD, ULTEM 9085, Nylon, Carbon Fiber, Carbon Fiber FR, Kevlar, HSHT Fiberglass, Fiberglass|
|Connectivity||WiFi, USB Cable, Ethernet Cable|
|Technology||Fused Filament Fabrication (FFF)|
|Power Requirements||200-240VAC 3P+E, 24A or 347-416VAC 3P+N+E, 14A; 8 kW|
|Dimensions||1325 x 900 x 1925 mm (52 x 36 x 76 in)|
|Supports||Same material breakaway supports (Onyx) Dedicated breakaway support (ULTEM™ filament1)|
- Markforged FX20
- 1 year warranty
