The Resin Pumping System, designed as an accessory for Form 3 (+/B/L/BL) Series stereolithography (SLA) 3D printers, efficiently channels 5 litres of resin directly into the printer’s resin tank. Enjoy an impressive 86% reduction in waste, heightened efficiency due to fewer cartridge changes, and access bulk pricing benefits on Formlabs' SLA resins.

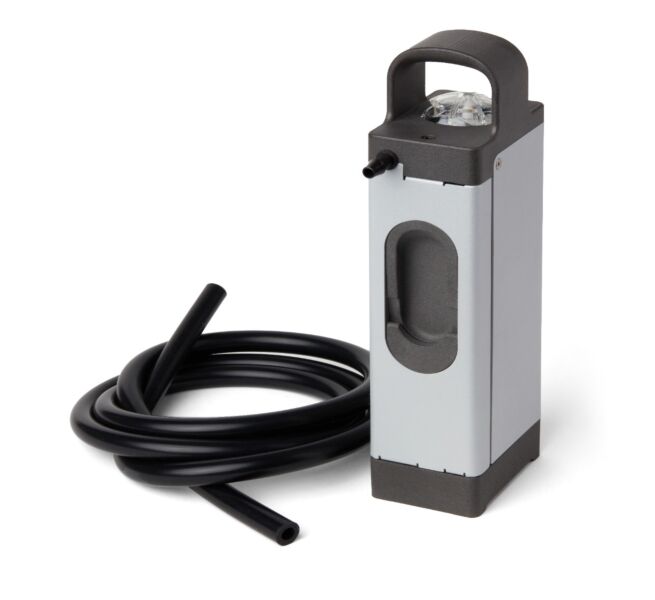

The Resin Pumping System comprises a Resin Pump linked to a 5L Resin Container, tubing, and a distinctive resin card. This innovative setup not only tracks material usage but also alerts you when resin levels are low, ensuring seamless printing.

To start printing using the Resin Pumping System on your Form 3/B/+ or Form 3/B/L, follow these straightforward steps:

1. Slide the resin card into the Resin Pump's slot.
2. Unscrew the cap of the 5L Resin Container and attach the transfer cap.
3. Disconnect the silicone plug from the transfer cap and link the tubing between the Resin Pump and Resin Container.
4. Remove the drip cap from the Resin Pump and position it into the printer's cartridge slot.

Specifications

More Information
Manufacturer SKU	F3-RPS-01
Brand	Formlabs

What materials can't be used with this pump?

Heavily Filled Resins, PU Family resins, and 3rd party resins are incompatible with the Resin Pumping System. Several others are not compatible due to other reasons

Rigid 10K
Denture Teeth V1
Premium Teeth
Temporary Crown and Bridge
Permanent Crown
Alumina 4N
PU Rigid 650
PU Rigid 1000
Rebound
Denture Base
Color Base

What is the lifespan of the pump?

Formlabs resin pumps were tested for up to 600 hours of pumping without experiencing failure which translates to between 350 and 850 litres of resin depending on the resin viscosity.
The pumps have the same 1-year warranty that all Formlabs products fall under which covers failures due to manufacturing defects.

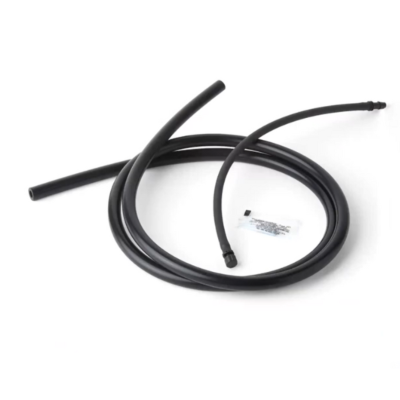

What is the lifespan of the tubing?

Over time, the pump’s tubing will begin to wear out and pump performance will diminish resulting in slower fill rates. For this reason Formlabs recommend changing the pump tubing every 6 months.

Whats in the box?

Downloads

There are no file attachments for this product.
