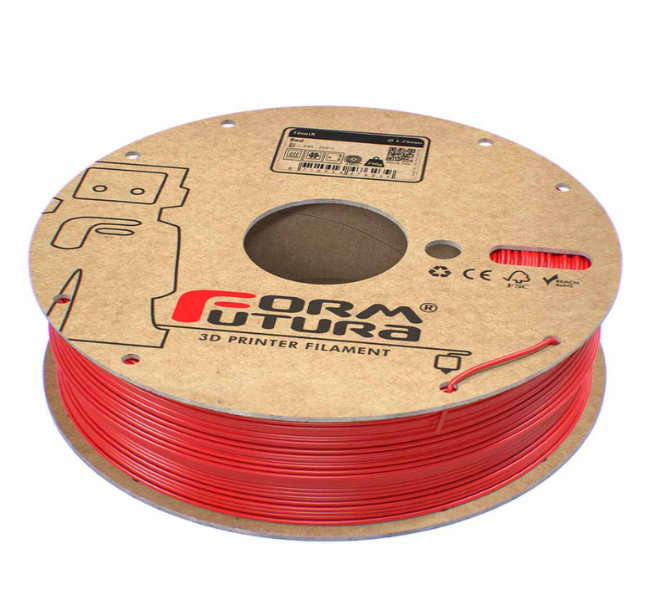

FormFutura TitanX ABS Filament - Red 1.75mm 750g
TitanX is used by industries worldwide for creating functional prototypes and end-use parts.
TitanX is a high-end engineering filament with ABS (acrylonitrile butadiene styrene) as its main ingredient. The formulation of TitanX is enhanced with added polymers, binding agents and impact modifiers. This has resulted in an engineering filament that combines exceptional mechanical properties with optimized interlayer adhesion and virtually no warping.
Key features
- Strongly improved mechanical properties
- >65% more impact resistant than regular ABS
- Minimal warping, excellent interlayer adhesion, and seamless build plate adhesion
- Precise 3D printing with remarkable fine detail
- Vicat softening temperature of 97˚C
- Compatible with Helios Support for complex multi-extrusion 3D printing
- Nearly odorless processing and no unpleasant styrene smell when being 3D printed
Applications
- Functional prototyping
- End-use parts
- Fit testing
- Engineering parts
- Short-run manufacturing
General printing guidelines *
| Nozzle size: ≥ 0.15mm | Layer height: ≥ 0.1mm | Experience level: Beginner |
| Print temp: ± 245 – 270° C | Fan speed: 0-50% | |
| Heat bed: ± 100 – 110° C | Enclosure needed: Recommended |
*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these ranges if you think it is suitable for your printer. There is a lot of different type of printers, hot-ends, and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.
Strong adhesion
As TitanX is an engineering-grade material, it is recommended to use an adhesive on your build plate as a protective layer.
Filament length
| ρ: 1.10 g/cc | 50 gr coil | 0.75 Kg spool | 2.3 Kg spool | 4.5 Kg spool | 8 Kg spool |
| Ø 1.75mm | ± 18.9m | ± 283m | ± 869m | ± 1701m | ± 3024m |
| Ø 2.85mm | ± 7.1m | ± 107m | ± 328m | ± 641m | ± 1140m |
| Materials | TitanX ABS |
|---|---|
| Manufacturer SKU | TITX-175REDC-00750 |
| Technology | Fused Filament Fabrication (FFF) |
| Filament Diameter | 1.75mm |
| Weight (KG) | 750g |
| Brand | FormFutura |
| With Spool or Refill | With Spool |
