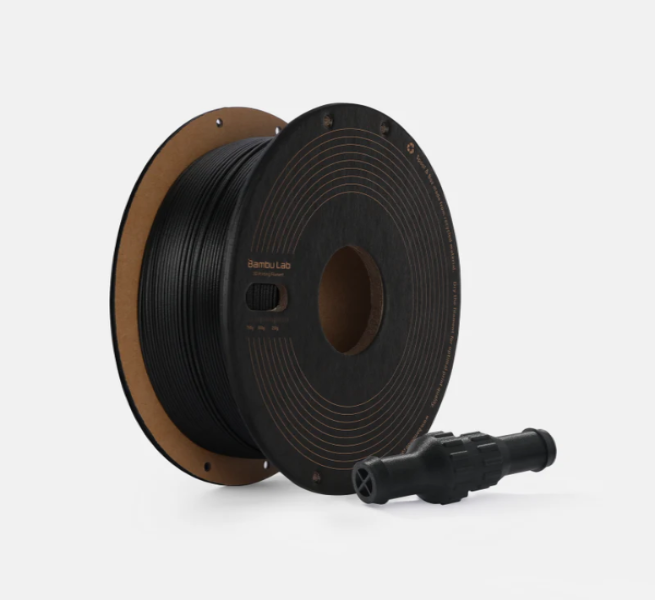

Bambu Lab PPS-CF Filament - Black 750g (With Spool)
Cautions for Use
- For X1E Printing Only
- 0.2 mm Nozzle Not Compatible
- Stainless Steel Nozzle Not Recommended
- AMS & AMS lite NOT Compatible
- Must Be Dried before Use
PPS-CF is a composite material made from carbon fibre-reinforced polyphenylene sulfide. This blend of PPS resin and carbon fibre provides outstanding resistance to solvents, corrosion, heat, and flames. It also offers exceptional strength, stiffness, and dimensional stability, making it ideal for specialised engineering applications that require high performance in challenging environments.
This filament offers a heat deflection temperature of up to 264°C under 0.45 MPa and can operate continuously at temperatures above 200°C. This far surpasses standard PA-CF materials, which have maximum temperatures of around 190°C and 120°C. Its exceptional heat resistance ensures excellent creep resistance, making PPS-CF perfect for demanding industrial environments and applications.
Testing shows that PPS-CF achieves flame-retardant properties comparable to the UL-94 V-0 standard, please go to the downloads tab to get the report for more information.
Combining the rigidity of PPS polymers with the reinforcing strength of carbon fiber, PPS-CF delivers outstanding stiffness, bending strength, and tensile strength. Its excellent dimensional stability and resistance to warping ensure that large prints remain precise and avoid deformation during the printing process, making it ideal for high-precision applications.
PPS-CF provides excellent solvent and chemical resistance, surpassed only by PTFE (Teflon). It remains virtually insoluble in solvents below 200°C and shows remarkable resistance to acids, bases, and salts under normal conditions. This makes PPS-CF the ideal choice for environments where chemical stability is crucial.
With a moisture absorption rate of just 0.05%, PPS-CF maintains stable mechanical and thermal properties even in humid conditions. Unlike standard PA-CF, which can soften and degrade when exposed to moisture, PPS-CF retains its strength and durability, making it the superior choice for applications requiring high moisture resistance.
This fillament requires drying before use. We recommend the Polydryer by Polymaker.
Accessory Compatibility
| Recommended | Not Recommended | |
| Build Plate | Smooth PEI Plate / Textured PEI Plate | Cool Plate |
| Hotend | Hardened Steel 0.4mm / 0.6mm (recommended) / 0.8 mm | Hotend with Stainless Steel Nozzle (all size) Hotend with Hardened Steel Nozzle (0.2 mm) |
| Glue | Bambu Glue Stick | Bambu Liquid Glue |
| AMS & AMS lite | / | AMS & AMS lite |
Printing Tips
Bambu PPS-CF Printing Guidelines:
- Nozzle Temperature: Recommended range is 310 to 340°C.
- Chamber Temperature: Recommended range is 60 to 90°C.
- Tip: Using higher values within these ranges can enhance the mechanical properties of the printed parts, especially in the Z-direction.
Drying Recommendations:
- Drying Temperature:
In a blast drying oven: 100°C to 140°C for 8 to 12 hours.
On an X1 printer's heatbed: 110°C to 120°C for 10 to 12 hours (less effective than a blast drying oven).
Dry in the Polymaker Polydryer - Level 2 Setting for 18 hours
- Important Note: Higher temperatures within the drying range yield better results, but do not exceed 160°C to avoid damaging the spool.
Storage Tips:
- Storage Condition: To prevent the filament from absorbing moisture, use an airtight storage container with desiccant during printing.
Annealing Prints:
- If you need to anneal the prints, please refer to the Technical Data Sheet (TDS) in the 'Download' section.
Additional Information: For more details, refer to Printing tips for Engineering materials on WIKI.
| Materials | PPS-CF |
|---|---|
| Manufacturer SKU | T02-K0-1.75-750-SPL |
| Filament Diameter | 1.75mm |
| Weight (KG) | 0.75 |
| Brand | Bambu Lab |
| With Spool or Refill | With Spool |
| Product Information | For X1E Printing Only, 0.2 mm Nozzle Not Compatible, Stainless Steel Nozzle Not Recommended, AMS & AMS lite NOT Compatible, Must Be Dried before Use to Achieve Optimal Print Quality. |
