AMT PostPro DP MAX
Lead-time 2-3 working days
•Reduces time and labor cost
•Designed for large parts and/or large batches of parts.
•Reduces scrap rate
•Ensures repeatable results
•Primes surfaces for secondary treatments e.g. chemical smoothing
•Allows different types of media to depowder and/or surfacing/peening
•All materials and geometries
•Easy to install, use, and low maintenance
•CE and ATEX certified
•Compact design to reduce floor space.

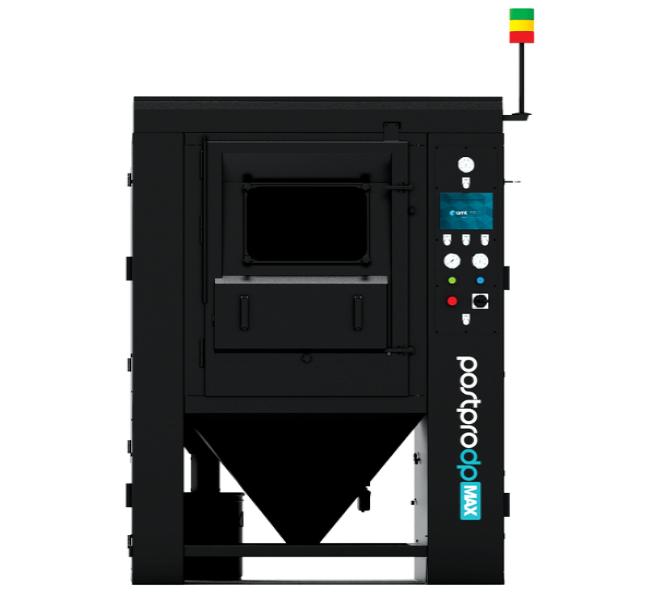

PostPro DP MAX is a fully automated 2-in-1 depowdering and shot blasting system designed for maximum throughput.
Continuous Tumble Belt
Powered by continuous tumble belt technology for maximum throughput and process flexibility, the PostPro DP Max has a 63 liter processing volume and has been designed for use in large component and/or large batch production runs.
Efficient User Experience
The system is front loading at an ergonomic working height with reversible belt controls enabling automatic loading and unloading of parts to and from the transport container.
Equipped with a Siemens S7-1200 PLC, the PostProDP Max can be connected with external Manufacturing Execution Systems and is able to communicate and integrate with other EMS in a production workflow.
Fully Cleaned Parts
Suitable for all commonly used materials and geometries, and additionally can be used for shot blasting. Delivering parts ready for use or for other post-processing steps.
Machines gently clean large batches of parts in less than 10 minutes. Recipes and basket angles can be adjusted and stored, achieving reproducible results and maximum output.
Operator-friendly design configuration allows for a safer and more efficient user experience. Easy to install and use, and CE certified.
DESIGNED SPECIFICALLY FOR ADDITIVE MANUFACTURING INDUSTRY
- Equipped with an ionization unit that reduces static electricity, and therefore results in “dust-free” parts.
- Cyclone provides efficient and effective blast media and dust separation to ensure an optimal operating mixture.
- Ventilator system with high extraction rate to prevent dust build up in the working chamber and enhanced visibility.
- Quick-clean sealed dust bin to store waste dust and powder from the filter unit.
|Technology||Selective Laser Sintering (SLS)|
|Operating Temperature||Room temperature of between 10° C and 40° C.|
|Power Requirements||3 x 400V, 50 Hz, earth and neutral, 25A|
|Dimensions||1,617 x 1,725 x 2,500 mm|
