Fast UK Delivery | Next Working Day Delivery* | Order before 4:45pm
Available to Order
main product photo
Shining 3D

Shining 3D EinScan Pro 2X V2 (Free Industrial Pack) EXModel 1-Year License included

Add to Compare Download Product Brochure

Available to Order Get in touch
SKU
SHGEINSCANPRO2X-V2-U1
£5,275.00 £6,330.00
Specifications
Whats in the box?
Downloads
Delivery and Returns
Features

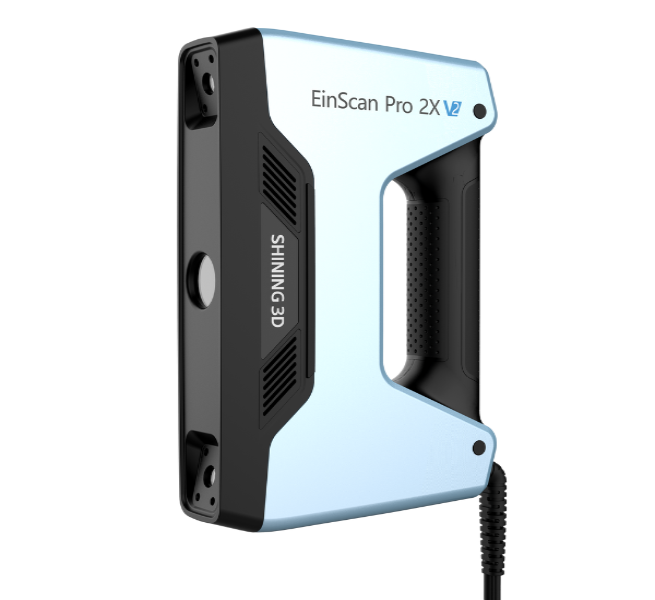

The EinScan Pro 2X V2 is a state-of-the-art handheld 3D scanner

Specifically engineered to deliver exceptional performance in capturing high-quality 3D models. This next-generation device is the culmination of insights gathered from thousands of users worldwide, alongside the innovative advancements of Shining 3D’s R&D team. As a result, the scanner combines cutting-edge technology with practical usability, making it an appealing choice for professionals across diverse industries.



Key features include its enhanced scanning speed and improved accuracy, designed to make the process of 3D modelling not only more efficient but also more reliable. Thanks to its portability and versatility, this advanced scanner can tackle a variety of challenging tasks — from simple 3D scans to complex and detailed projects.




Versatile Modes for Scanning and Alignment

The EinScan Pro 2X V2 is equipped with multiple scanning and alignment modes, giving users the flexibility to adapt the scanner

 to various applications and project requirements.



Scan Modes:

The scanner provides four distinct scanning modes, each optimised for specific use cases:

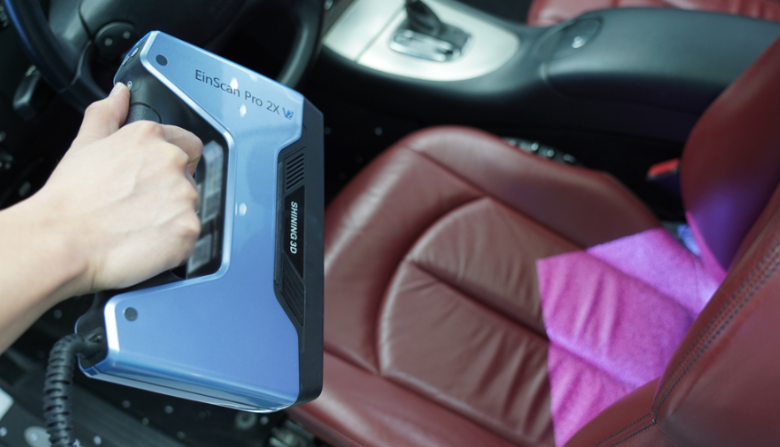

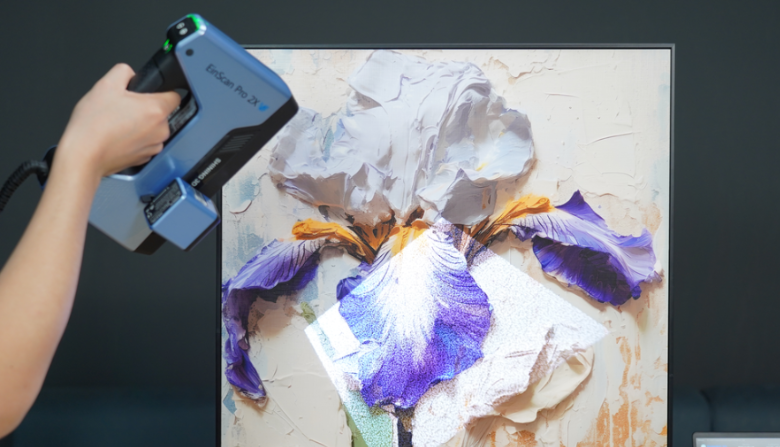

  • Handheld Rapid Scan - Designed for faster scanning

  • Handheld HD Scan - Ideal for capturing fine details in higher resolution when scanning objects manually

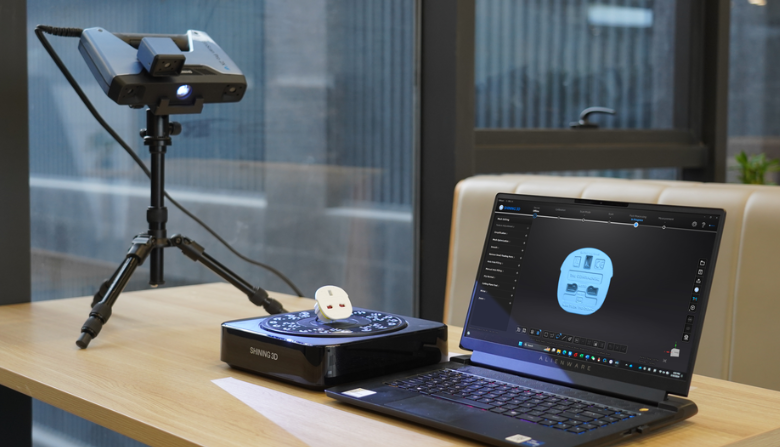

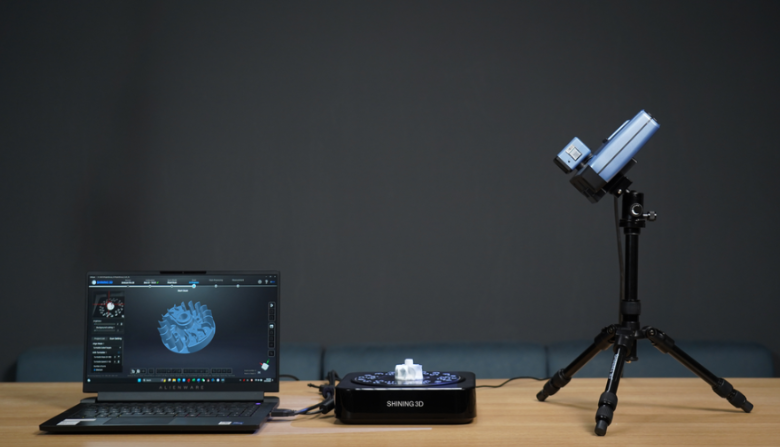

  • Fixed Scan with a turntable - Suitable for static, automatic scans of objects placed on a turntable, improving accuracy through precise rotations.

  • Fixed Scan without a turntable - Achieves precise results when the scanner is mounted on a tripod and scanning is done manually.




Alignment Modes:

To ensure seamless alignment of scanned data, the EinScan Pro 2X V2 offers six powerful alignment methods:

  • Feature Alignment - Aligns scans by using the unique geometric features of the object.

  • Marker Alignment - Utilizes markers placed on or around the object for accurate alignment.

  • Texture Alignment - Employs the object’s surface texture or patterns to align scans.

  • Turntable Coded-Targets Alignment - Works in tandem with coded targets on the turntable for automated and highly accurate alignment.

  • Global Markers Alignment - Aligns scans across large or complex objects using a global marker system, ensuring precision over extended areas.

  • Manual Alignment - Allows users to manually align scans when other options are unsuitable, providing ultimate control over the process.

The Industrial Pack is an optional add-on for the EinScan Pro 2X V2 3D Scanner, significantly augmenting its capabilities. When included, it enables the scanner to perform static, automatic scans on a tripod, combined with a turntable. This functionality not only increases the accuracy of scans but also makes the process effortless for objects that require fixed, highly-detailed scanning.




By combining the precision of the Industrial Pack with the scanner’s in-built modes, this 3D Scanner becomes an indispensable tool for industries that demand high-resolution 3D modelling.



In essence, the EinScan Pro 2X V2 is a versatile, next-level 3D scanning tool designed to meet diverse professional needs. With its array of scanning and alignment options, and the ability to integrate advanced features like the Industrial Pack, it empowers users to achieve high-quality results in less time. From product design and reverse engineering to VR/AR applications, the V2 is a reliable and innovative solution in the ever-expanding world of 3D scanning technology.


Model Operating System Processor Memory Graphics Card Video Memory USB Port
EinScan Pro 2X  Windows 10 (64-bit) Intel i7-8700 16 GB GTX 1080 4 GB 3.0
Specifications
More Information
System Requirements Windows 10 (64-bit)
Weight (KG) 1.13
Brand Shining 3D
Scan Accuracy Up to 0.1mm
Light Source LED
Scanning Working Distance 400mm
Scan Range 150*120 mm — 250*200 mm
