Builder Extreme 1500 HC

Perfect for automotive, aerospace and prototyping industrial applications.
Available to Order
SKU
BUIEXTREME1500HC-U1
£41,300.72 £49,560.86
Benefits
  • Heated Chamber: Up to 70°C
  • Extruder Max Temp: Up to 300°C
  • Print volume: 1100x500x820 mm (XYZ)

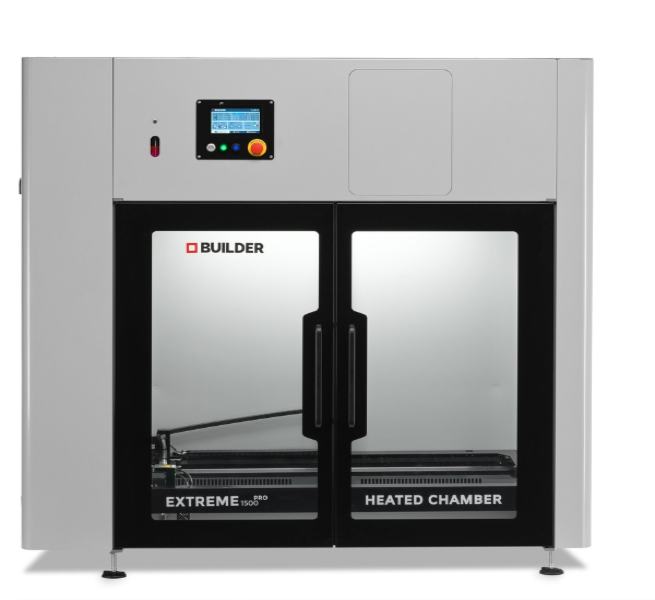

The Builder Extreme 1500 HC (Heated Chamber) is the latest addition to the Builder Extreme range.



With a build volume of 1100x500x820 mm, in combination with a heated chamber, makes it the ideal large scale 3D printer to print material such as PET-G, ABS, ASA, PC, CF15 and more. The large build volume allows you to print large and durable parts in full scale.



These materials are perfect for industrial applications within the auto-motive, aerospace, prototyping and signing industry as these materials are heat and impact resistant.



The extruder has a maximum temperature of 300 degrees Celsius and is water cooled. The heated chamber is heated up to 70 degrees Celsius to make 3D printing of materials like ABS and ASA easier. The filaments are located in a heated cabinet for optimal use.



The Extreme 1500 HC has a heated chamber up to 70 degrees and a water cooled mono print head heated up to 300 degrees Celcius. This, in combination with a print volume of 1100x500x820 mm XYZ, makes it one of the largest industrial FDM 3D printers on the market. Removing printed parts from the build plate is easy due to the removable flexible build plate.



The industrial grade filament is placed in a temperature controlled chamber to ensure the filaments remain in the best condition possible while printing. It keeps the filament moist and dust free and offers space for two 4.5 kg spools.

More Information
Layer Height 0.05 – 0.7 mm
Build Dimensions 1100 x 500 x 820 mm (XYZ)
Materials PLA, ABS, PET-G, ASA and more, Nylon, Nylon CF15 (1.75mm)
Platform Auto Leveling
System Requirements Mac, Windows
Software Supplied with Simplify3D
Connectivity WiFi, USB Stick
Technology Fused Filament Fabrication (FFF)
Operating Temperature Heated Chamber Up to 70°C. Extruder maximum temperature 300°C
Dimensions 1500 x 600 x 1600 mm
Filament Diameter 1.75mm
Weight (KG) 290
Brand Builder
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
  • Nozzle set (0.4, 0.6 and 0.8 mm)
  • Spare set of Teflon tubes for extruder
  • Pressure plug to clean nozzle
  • Glue for heated bed
  • Paint roller set for gluing heated bed
  • Levelling tools
  • Manual AstroBox
  • Builder Extreme 1500 HC 3D Printer
