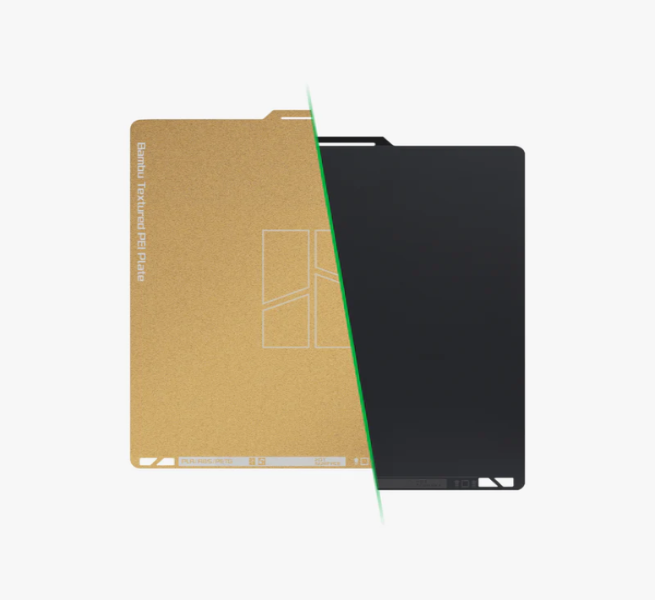

Bambu Lab Dual-Texture PEI Plate for X1 & P1 Series and A1
Discover the versatility of two distinct textures on one plate: with a Textured PEI surface on one side and a Smooth PEI surface on the other. This plate is equipped with a 0.5mm magnetic stainless steel plate, boosting magnetic adhesion and preventing warping, ensuring optimal print quality throughout your 3D printing projects.
Smooth PEI Plate:
Using a Smooth PEI Plate enhances Z-axis precision in printing, guaranteeing heightened accuracy and consistency in the vertical dimension. This feature makes the Smooth PEI Plate an ideal option for printing parts requiring impeccable fit accuracy, where precise alignment and tight tolerances are important.
The use of a specially selected matte PEI sheet can give the bottom surface of the printed object a smooth and matte texture, thereby enhancing its overall appearance.
Textured PEI Plate:
The Bambu Texture PEI Plate delivers a unique first-layer surface unlike any other. Using a powder-coating process, this PEI Build Plate creates a robust texture that enhances the quality of your prints with an added touch of texture
Bambu Lab has made the Bambu Texture PEI Plate tougher through smart manufacturing tweaks. Plus, enjoy solid first-layer adhesion without the need for extra adhesives.
Considerations
- Deposition of dust and grease on the build plate decrease adhesion. It is recommended to regularly clean the surface with detergent and water to to maintain best adhesion.
- Increasing heatbed temperature enhances adhesion. Users need to adjust the temperature of the heatbed based on their specific requirements in order to achieve the most suitable level of adhesion.
- Carefully sanding the Textured PEI surface with fine-grit (600 was recommended) sandpaper can help restore adhesion.
- If bubbles appear on the bottom of the Smooth PEI sheet, heating it on the heatbed at a temperature of no less than 80 degrees for several hours can be helpful in eliminating the bubbles.
- Do not clean the Bambu Dual-Texture PEI Plate with Acetone, as it will damage the PEI surface.
- Bambu Lab recommends only using Bambu Lab official glue on the Bambu Lab build plates, and can not be held responsible for any damage caused to plates as a result of using third-party glue on build plates.
- Always wait for a few minutes before removing printed models to allow the plate to cool down for easy print removal. This prevents damage to the plate and ensures a long lifetime of the product.
- The Bambu Dual-Texture PEI Plate is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.
Recommended Settings
Please note that other slicer settings might need to be adjusted based on the printed model and the filament requirements
| Materials | Heatbed Temperature | Glue Stick Required for Smooth PEI Surface? | Glue Stick Required for Textured PEI Surface? |
| PLA/PLA-CF/PLA-GF | 45~65℃ | No | No |
| PETG/PETG-CF | 60~80℃ | Glue Stick/Liquid Glue | No |
| ABS | 90~100℃ | Glue Stick/Liquid Glue | No |
| ASA | 90~100℃ | Glue Stick/Liquid Glue | No |
| TPU | 35~45℃ | Glue Stick/Liquid Glue | Glue Stick/Liquid Glue |
| PVA | 45~60℃ | Glue Stick/Liquid Glue | No |
| PC/PC-CF | 90~110℃ | Glue Stick | Glue Stick |
| PA/PA-CF/PAHT-CF | 90~110℃ | Glue Stick | Glue Stick |
| PET-CF | 80~100℃ | Glue Stick/Liquid Glue | No |
Installation Steps
Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you
Step 2: Lower the plate and secure to the magnetic platform
| Manufacturer SKU | FAP011 |
|---|---|
| Dimensions | Usable Print Size - 256 x 256 mm |
| Weight (KG) | Packaging Weight: 450 g |
| Brand | Bambu Lab |
