3DGence Industry F350
Lead-time 2-3 working days
- Speed - Accurate and rigid kinematic system
- Modular printing system – wide materials range
- Large heated chamber - capable of reaching 266°F
- Soluble materials – support structures made of ESM-10, complex geometries
- 3DGence CLOUD - full proces control & monitoring
- Built-in SMM system for material recognition
- Industrial grade saftey accessories - air filter, signal tower and power backup

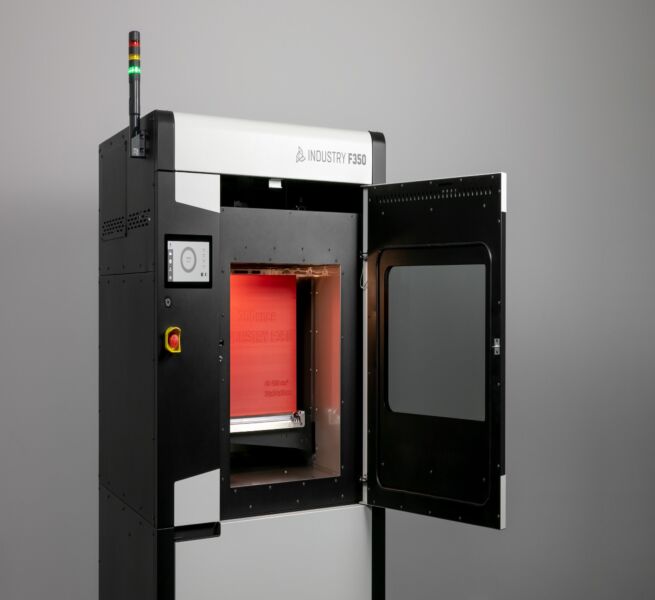

The 3DGence INDUSTRY F350 is a dual extruder FDM 3D printer designed for industrial applications where accuracy, speed, comfort and safety of the entire 3D printing process are crucial.
The INDUSTRY F350 is suitable for working with a wide range of technical materials including the high-performance thermoplastics.
Versatility
Print high-performance and engineering grade materials on one machine.
The 3DGence modular system is unique in the industrial 3D printers segment. Used in the 3DGence INDUSTRY F421 and INDUSTRY F350 it is a practical and cost-effective solution.
The possibility of using three different modules in one 3D printer allows you to produce repeatable models from the widest range of filaments.
Each module is customised to a specific group of materials in order to optimize the printing process. Internal modules memory saves the time that would be used for calibration. All the modules are also equipped with dual hotends and inactive nozzle lifting system.

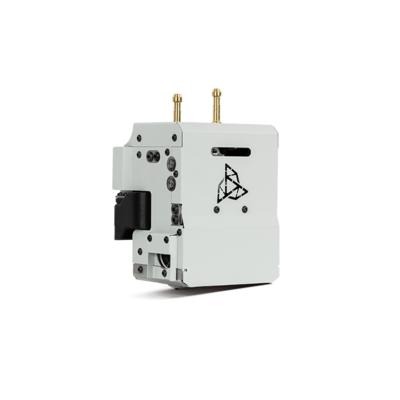

The Module M280 is the basic printing module dedicated for 3DGence INDUSTRY F421 and INDUSTRY F350, that allows to print the commodity materials such as PLA, ABS, ASA, PA6 and PA-CF. M280 module is also capable of printing soluble support structures ESM-10 and break-away HIPS material.
Modules M360 and Module M500 print at temperatures up to 280°C, 360°C and 500°C respectively, allowing you to print standard plastics like ABS and PLA, and more advanced materials like PEEK and ULTEM.
Productivity
Achieve the best results with unmatched speed on INDUSTRY F350.
High travel and print speeds with the highest quality at the same time is possible with closed-loop, encoded stepper motor system.
Print speed up to 400 mm/s and 1 meter per second of travel move.
Heated printing chamber
F350 is equipped with actively heated build chamber, for optimum printing conditions.
The combination of the heated build chamber, appropriate extrusion temperatures, and heated material chamber, ensures that the prints made of high-performance polymers like PC or PEEK are always of best possible quality.
The heated chamber allows to print polycarbonate, PC blends or copolymers reaching the expected mechanical properties, without warping or any other printing failures.
Cost-efficiency
Best in class total cost of ownership
Benefit from the best price to volume ratio among the industrial-grade 3D printers with 3DGence INDUSTRY line. Save time and money during the full lifetime of your industrial 3D printer.
Online monitoring
INDUSTRY F350 meets the Industry 4.0 requirements.
3DGence CLOUD includes such services and functionalities as running or queueing the prints, remote monitoring of the printer and prints status, file sharing, live camera feed and collection of the statistics. The software dedicated to the 3DGence industrial printers INDUSTRY F420 and F350.
Safety
Ensured user safety and work continuity.
With a focus on high-performance materials, it’s important to provide adequate emissions control. F350 filteration system offer unprecedented filtering efficiency among FFF AM platforms, capable of filtering: macro dust, nano dust (VOC, UFP), solvent vapour, noxious gasses, foreign particles.
F350 can be equipped with a UPS unit, that supports all functions during power outages. Signal tower is an additional accessory, indicates the status of the print and makes the machine highly visible from distant parts of the production site.
Other INDUSTRY F350 safety features:
- An electronic lock of the main chamber door, also controlled via Cloud service and printers’ interface.
- Sensors for main chamber door and top access hatch.
- Redundancy for thermal sensors of high-power heating elements.
- Emergency switch – immediate cut of power to motion and thermal control.
- System for emergency shutdown of logic.
- Software access overdrive – the printer can be remotely shut down.
Heated material chamber
Proper filaments handling ensures the best results. Keep your materials always dry and ready to print.
Materials are kept in a stable environment due to the heated materials chamber. Humidity for the loaded materials will be reduced regardless of the 3D printer’s operational status thanks to the active chamber heating system.
Smart Material Manager
Guarantee of optimal working conditions. Take control over the printing process and get the results you want.
Smart Material Manager is an intelligent filament and printing environment control system. SMM consists of NFC reader for loaded material recognition, material weight control system, automatic material loading system and flows control sensor.
| Materials | M280 - PLA, ABS, ASA, PA6, PA-CF, ESM-10, HIPS. M360 - PC, ESM-10. M500 - PEEK, ESM-10 |
|---|---|
| Layer Height | 50 microns |
| Build Dimensions | 340 x 340 x 350 mm |
| Brand | 3DGence |
| Manufacturer SKU | 5908216294679 |
| Enclosure | Fully enclosed heated print chamber and separate heater filament chamber. |
| Connectivity | WiFi, USB Stick, Ethernet Cable |
| Technology | Fused Filament Fabrication (FFF) |
| Environmental | Working temperature: 18-30°C Storage temperature: 20-54°C |
| Software | 3DGence SLICER 4.0, 3DGence CLOUD |
| Dimensions | 1825 x 960 x 940 mm |
| Filament Diameter | 1.75mm |
| Weight (KG) | 350 |
- 3DGence INDUSTRY F350 3D printer
- Set of accessories (Wi-Fi module incl.)
